Slant Bed Mill-Turn Machine TCK56Y-500: 300N.m Torque for Heavy-Duty Auto Parts Machining
Slant Bed Mill-Turn Machine TCK56Y-500: 300N.m Torque for Heavy-Duty Auto Parts Machining

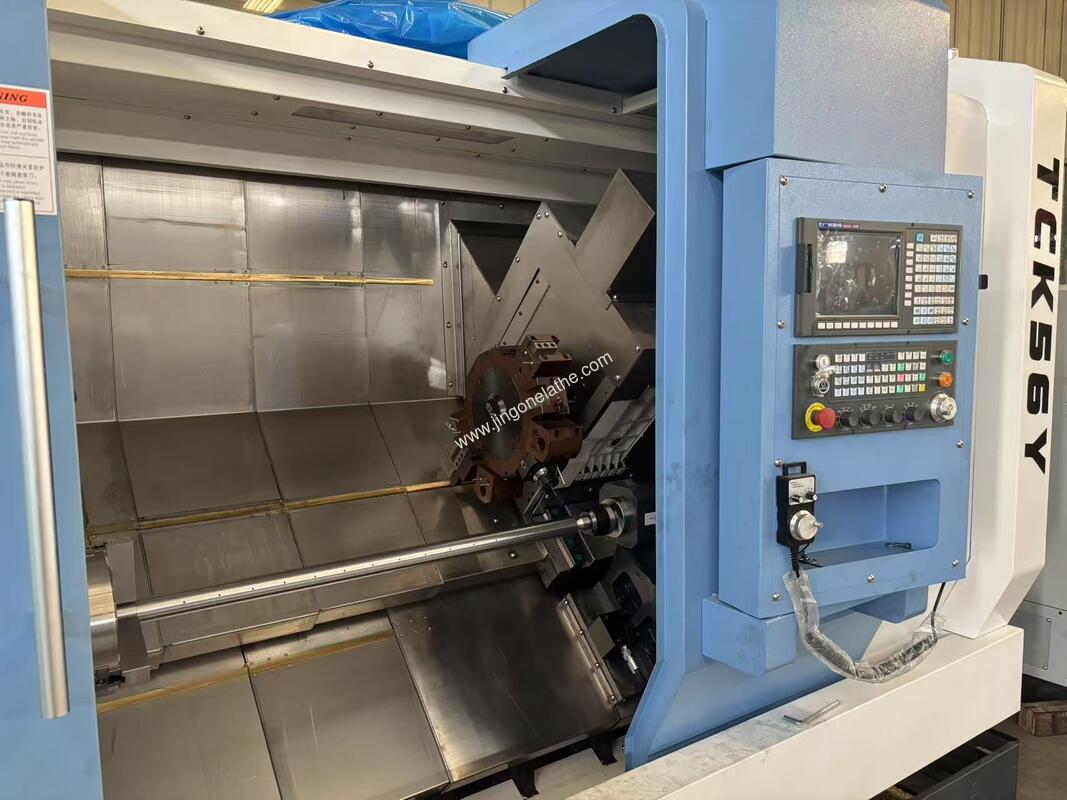

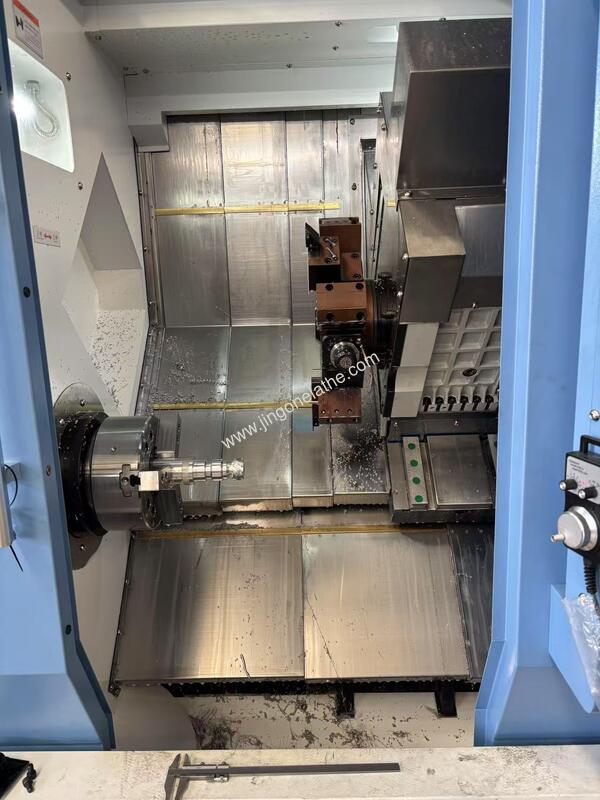

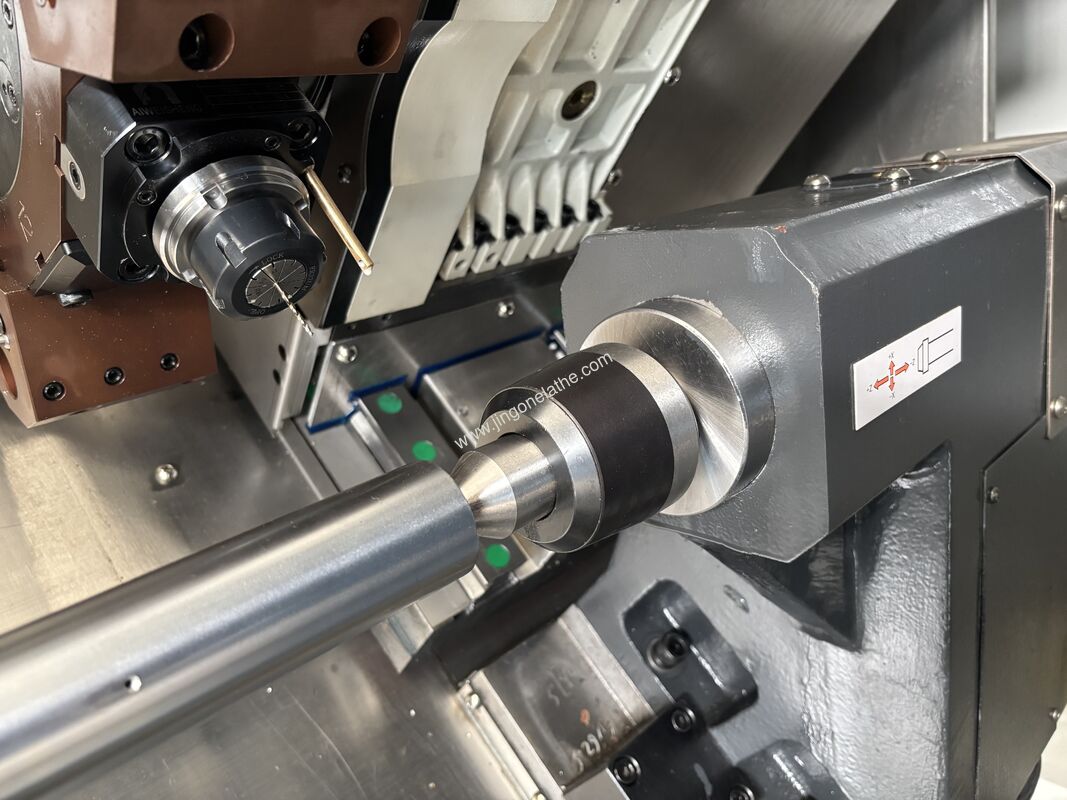

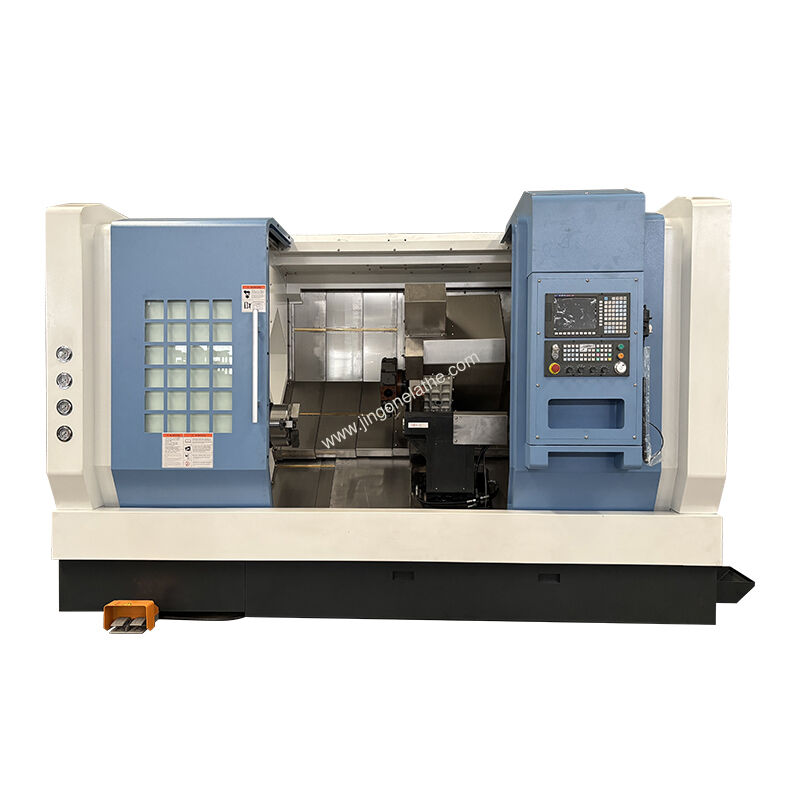

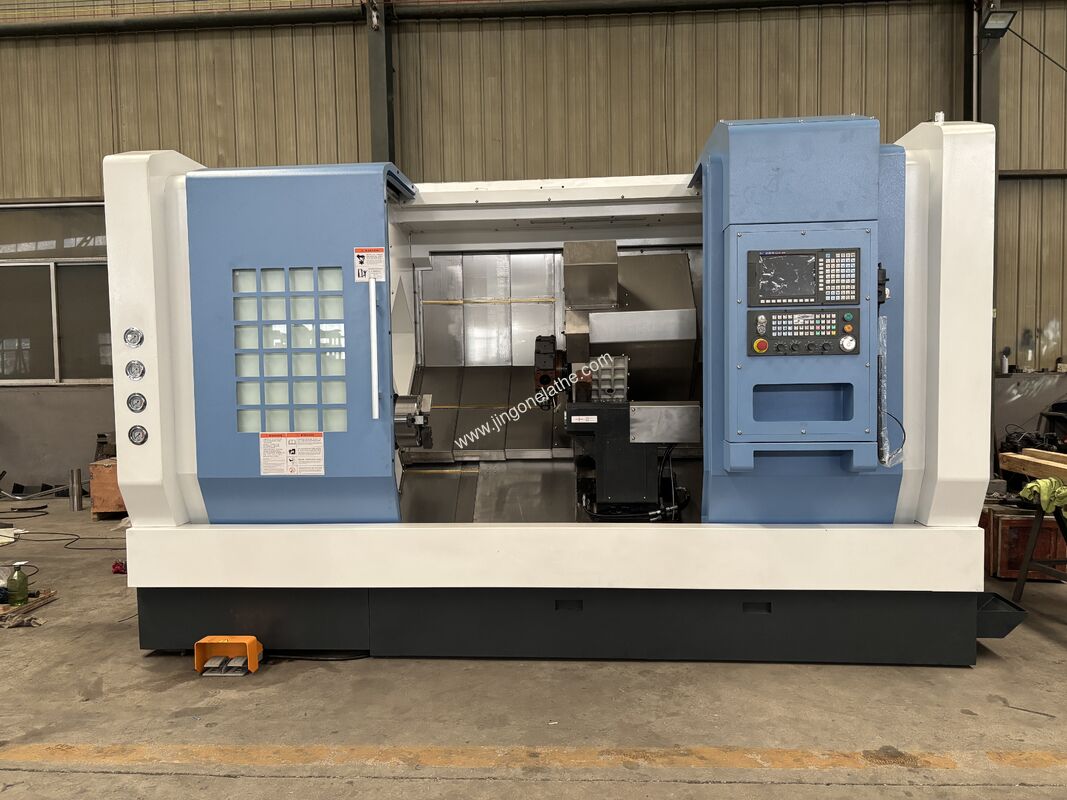

TCK56Y-500 turn mill center machine
300N.M Torque turn mill center machine
TCK56Y-500 mill turn cnc machine
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK56Y
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
600mm
Spindle Nose Type:
A2-8
Spindle Bore Diameter:
86mm
Spindle Speed Change:
Stepless
Turret Type:
BMT 55 Live Tool Turret
CNC System:
Fanuc Oi-TF
Highlight:
TCK56Y-500 turn mill center machine
,300N.M Torque turn mill center machine
,TCK56Y-500 mill turn cnc machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 27350 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
BMT Live Tooling CNC Turning Center TCK50M-800 Delivers Rigid Performance For 700mm Long Workpiece Machining
Get Best Price
Y-Axis CNC Turn-Mill Center TCK50Y-800: 700mm Workpiece Length For Complex Automotive Component Machining
Get Best Price
Contact Us
Contact Now
Product Description
Slant Bed Mill-Turn Machine TCK56Y-500: 300N.m Torque for Heavy-Duty Auto Parts Machining
Model: TCK56Y | Core Keyword: Slant Bed Mill-Turn Machine
Summary
Slant Bed Mill-Turn Machine TCK56Y-500 delivers heavy-duty cutting performance with 300N.m spindle torque and A2-8 spindle bore, ideal for thick-walled auto parts and small mold components.
Equipped with a BMT55 12-station live tool turret and Y-axis ±50mm travel, it integrates turning, milling, drilling and tapping in one setup, reducing machining errors and setup times for high-precision production.
With 500mm max turning length and 650mm center distance, this slant bed lathe suits short workpiece manufacturing in auto parts, mold and small machinery industries, supporting Fanuc, Siemens and other CNC systems for tailored operations.
Features
- 45° slant bed structure with linear guide rails (45mm X/Z-axis) ensures stable machining and long-term precision retention
- A2-8 spindle with 300N.m max output torque and 86mm bore enables heavy-duty cutting of thick-walled workpieces, supporting 75mm max bar capacity
- BMT55 12-station live tool turret with Y-axis ±50mm travel integrates turning, milling, drilling and tapping, reducing setup times by 30%+
- 500mm max turning length and 650mm center distance optimize production of short auto parts and mold components
- Compatible with Fanuc/Siemens/GSK/Syntec CNC systems, with optional chip conveyors and air conditioners for tailored workshop needs
Technical Specifications
| Items | Unit | TCK56Y-500 | TCK56Y-1000 | |
|---|---|---|---|---|
| Capacity | Max.swing diameter over bed | mm | ¢600 | ¢600 |
| Max.swing diameter over cross slide | mm | ¢420 | ¢420 | |
| Max.turning diameter | mm | ¢500 | ¢500 | |
| Center distance | mm | 650 | 1150 | |
| Max.turning length | mm | 500 | 1000 | |
| Spindle | Spindle nose type | A2-8 | A2-8 | |
| Spindle bore diameter | mm | ¢86 | ¢86 | |
| Max.output torque | N.m | 300 | 300 | |
| Max.bar capacity | mm | ¢75 | ¢75 | |
| Spindle speed | rpm | 3000 | 3000 | |
| Spindle speed change | Stepless | Stepless | ||
| Chuck size | inch | 10‘’ hydraulic hollow chuck | 10‘’ hydraulic hollow chuck | |
| Turret | Turret type | BMT 55 live tool turret | BMT 55 live tool turret | |
| Tool stations | T | 12-station | 12-station | |
| Tool size(square shank) | mm | 25x25 | 25x25 | |
| Tool size(round shank) | mm | ¢40 | ¢40 | |
| Tool chuck | ER25 | ER25 | ||
| Travel&Feed | X-axis travel | mm | 280 | 280 |
| Z-axis travel | mm | 650 | 1150 | |
| Y-axis travel | mm | ±50 | ±50 | |
| X-axis rapid feed | m/min | 15 | 15 | |
| Z-axis rapid feed | m/min | 18 | 18 | |
| Servo system | X-axis motor torque | N.m | 10 | 10 |
| Z-axis motor torque | N.m | 10 | 10 | |
| Y-axis motor torque | N.m | 10 | 10 | |
| Live tool motor torque | N.m | 15 | 15 | |
| Main motor power | Kw | |||
| Structure& Guideways | Machine bed tilt angle | 45° | 45° | |
| Guideway type | Linear guide rail | Linear guide rail | ||
| X-axis rail | mm | 45 | 45 | |
| Z-axis rail | mm | 45 | 45 | |
| Transmission | X-axis ball screw | mm | 4010 | 4010 |
| Z-axis ball screw | mm | 4010 | 4010 | |
| Tailstock | Tailstock type | Hydraulic tailstock | Hydraulic tailstock | |
| Movement | Hydraulic | Hydraulic | ||
| Sleeve travel | mm | 120 | 120 | |
| Sleeve taper | M.T.5 | M.T.5 | ||
| Accuracy | Positioning accuracy | mm | X: 0.01 Z: 0.012 | X: 0.01 Z: 0.012 |
| Repeatability | mm | X: 0.006 Z: 0.008 | X: 0.006 Z: 0.008 | |
| Power supply | KVA | 22 | 22 | |
| Coolant pump | L | 350 | 350 | |
| Others | Net weight | Kg | 4800 | 5500 |
| Max.load | Kg | 800 | 800 | |
| Dimensions (L × W × H) | mm | 3100x1850x1810 | 3600x1850x1810 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Standard |
| CNC system | Fanuc/Siemens/GSK/Syntec |
| Spindle motor | Standard |
| X/Z-axis motor | Standard |
| Y-axis movement motor | Standard |
| Live tool motor | Standard |
| Spindle unit | Standard |
| Spindle bearings | Standard |
| Linear guideway | Standard |
| Ball screw | Standard |
| Screw bearings | Standard |
| Hydraulic chuck | 10‘’ hydraulic hollow chuck |
| Servo turret | BMT 55 live tool turret |
| Hydraulic tailstock | Standard |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands to protect the 4800Kg machine during long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What materials can the TCK56Y-500 slant bed mill-turn machine handle?
A: The Slant Bed Mill-Turn Machine TCK56Y-500 with 300N.m torque cuts tough materials like steel, aluminum, and cast iron for auto parts and molds.
Q: How does the BMT55 turret reduce machining errors?
A: The BMT55 live tool turret on this Slant Bed Mill-Turn Machine enables one-setup multi-process machining, eliminating repositioning errors for high precision.
Q: Can I integrate a robot with the TCK56Y-500?
A: Yes, the Slant Bed Mill-Turn Machine TCK56Y-500 supports optional robot interfaces, enabling automated loading/unloading for high-volume auto parts production.
