High-Efficiency Polygon Turning Solution TCK35P CNC Lathe with 0.003mm Spindle Runout and 4000 RPM for One-Clamp Multi-Process Machining
High-Efficiency Polygon Turning Solution TCK35P CNC Lathe with 0.003mm Spindle Runout and 4000 RPM for One-Clamp Multi-Process Machining
Hexagonal Parts Flat Bed CNC lathe
TCK35P cnc polygon turning machine
TCK35P polygon turning lathe
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK35P
Contact Us
Request A Quote
Product Details
Max. Swing Diameter Over Bed:
320 Mm
X/Z-axis Travel:
340/300 Mm
Spindle Taper:
A2-5
Spindle Bore Diameter:
49mm
Flying Cutter:
Configured
Usage:
2,4,6-sided Polygons, Tapered Hexagons
Highlight:
Hexagonal Parts Flat Bed CNC lathe
,TCK35P cnc polygon turning machine
,TCK35P polygon turning lathe
Payment & Shipping Terms
Minimum Order Quantity
1
Price
9000 USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
TCK35P High-Speed Polygon Turning Center | One-Clamp Multi-Process Machining with Flying Cutter Technology for Hexagons & Squares
Model: TCK35P | Core Keyword: Polygon Turning Center
Summary

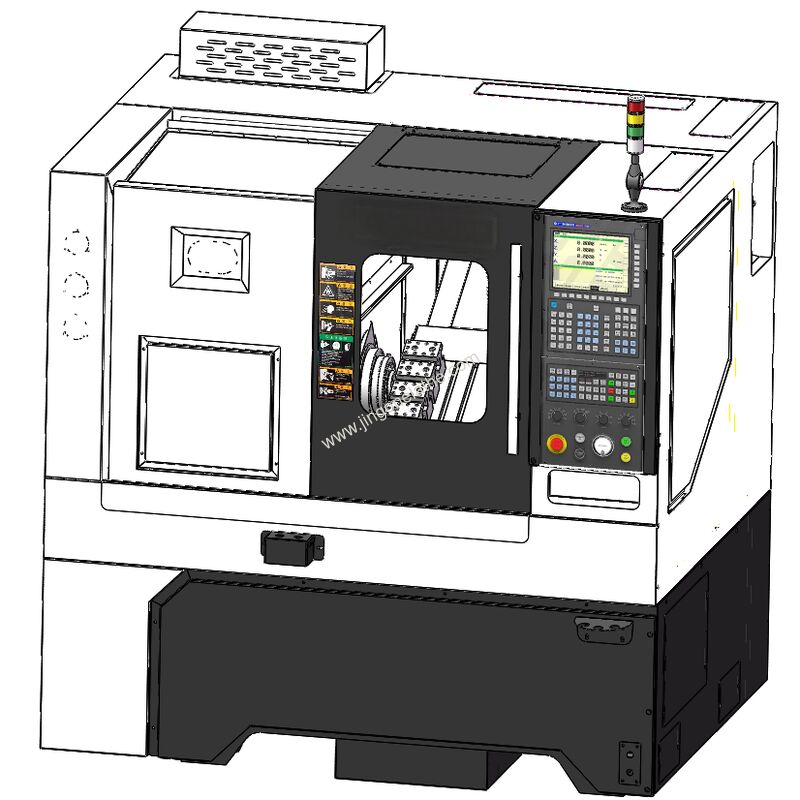

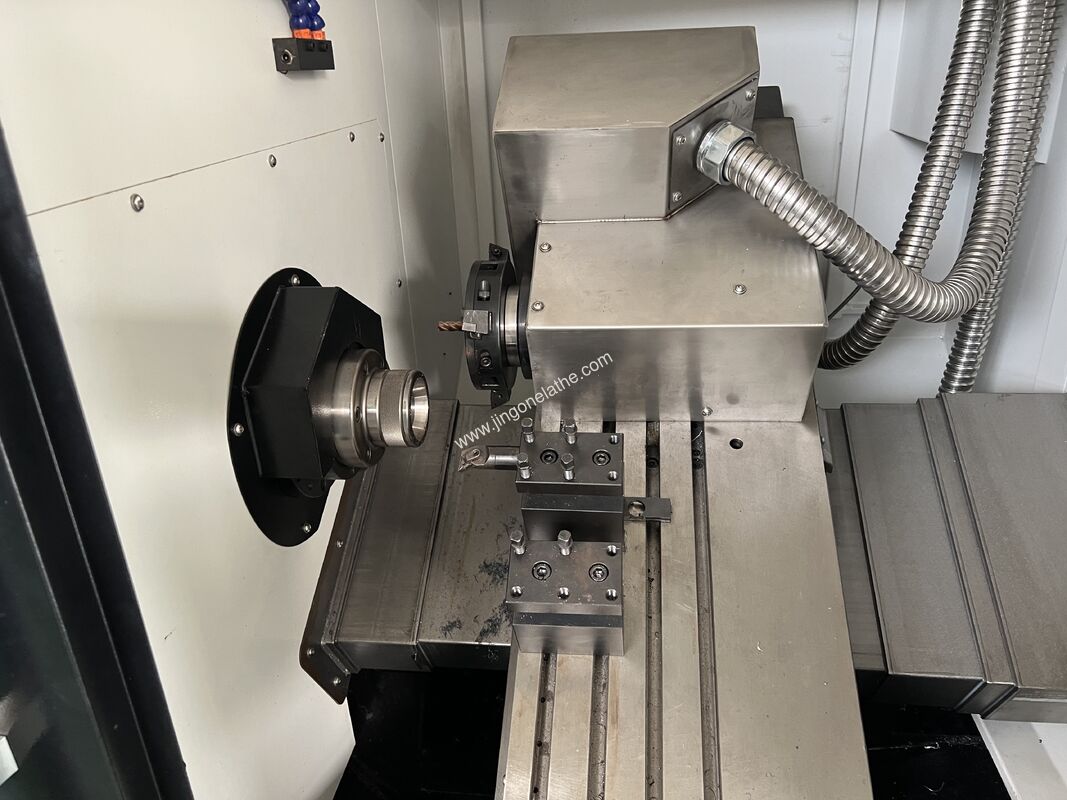

The TCK35P Polygon Turning Solution is a high-performance CNC Turn-Mill center designed for high-volume, precision manufacturing. Unlike traditional milling, the TCK35P utilizes Flying Cutter (Polygon Cutter) Live tooling to achieve synchronized rotation between the spindle and the tool.

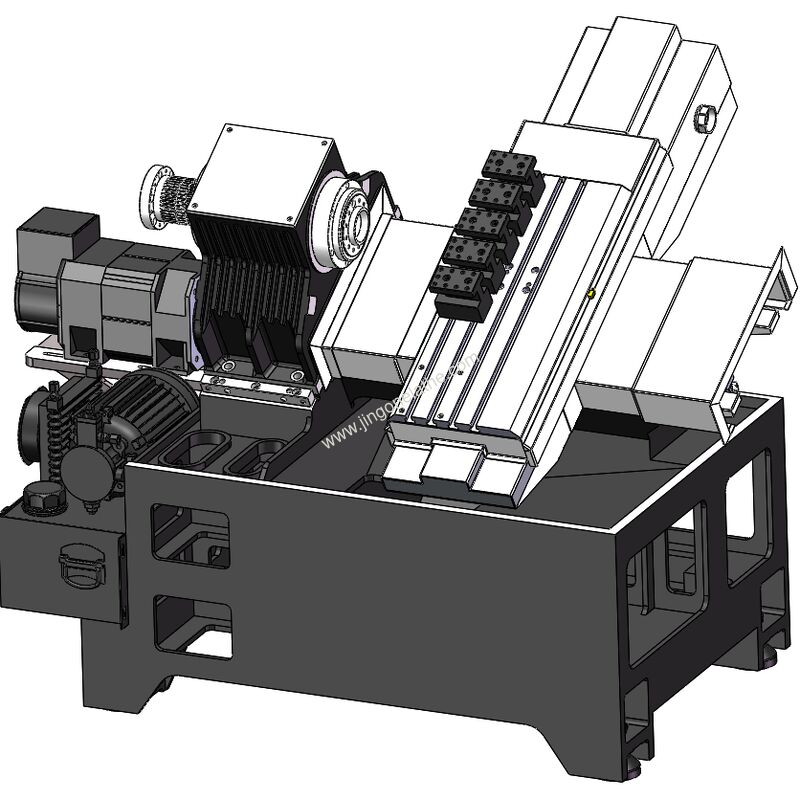

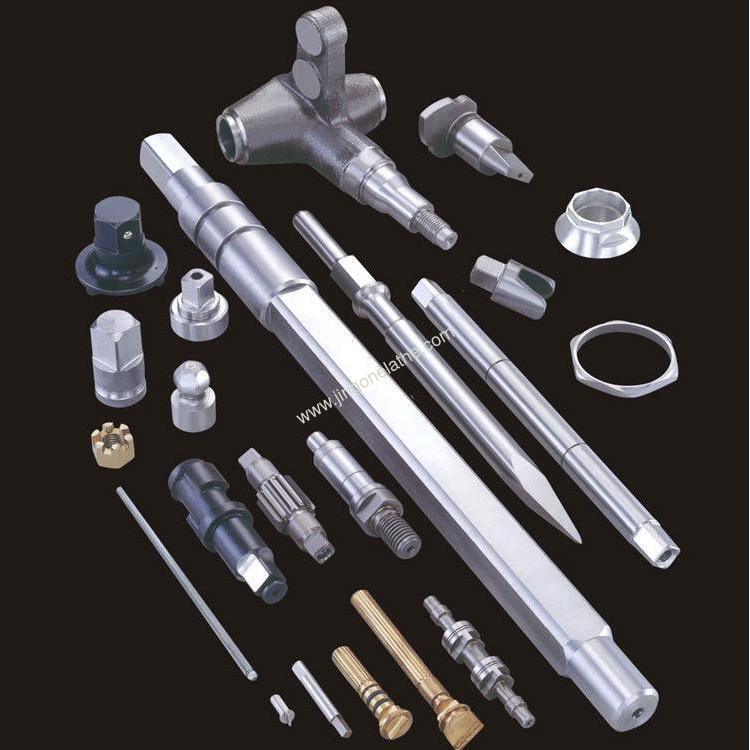

This allows for the high-speed generation of 2, 4, 6, and 8-sided polygons, tapered hexagons, and curved surfaces in a single setup. With 0.003mm spindle runout, the TCK35P eliminates secondary clamping errors, making it the ultimate solution for automotive fasteners, aerospace fittings, and complex valve components.
Features
-

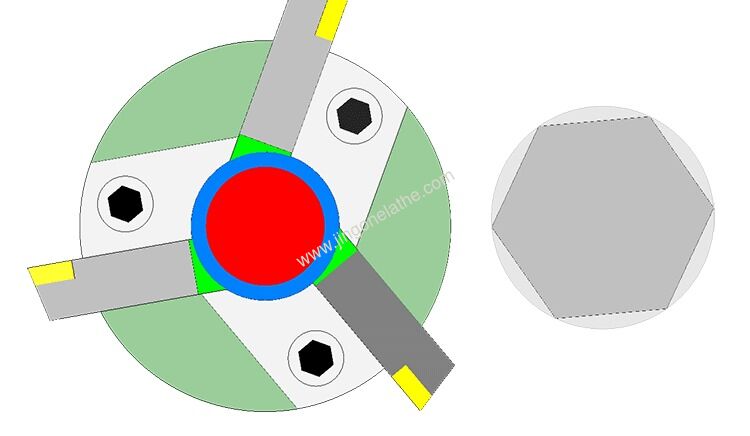

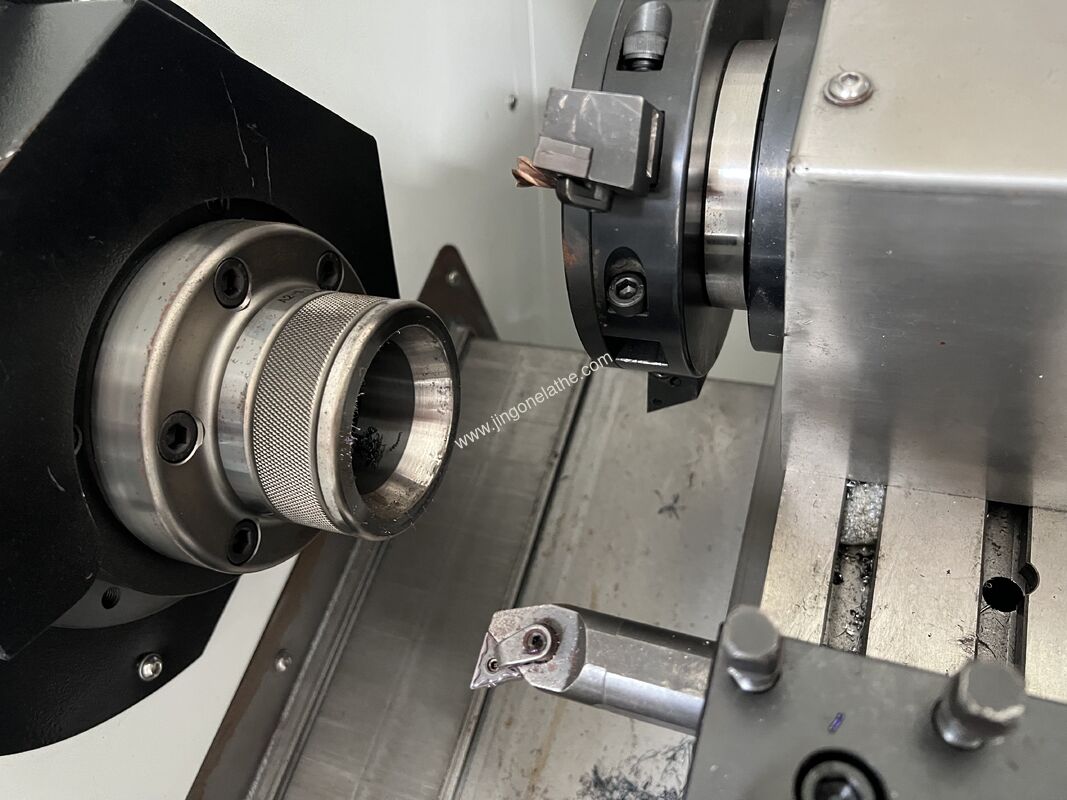

Flying Cutter & Synchronized Milling: Dedicated Polygon Power Head enables "non-stop" high-speed milling. Sync-ratio rotation delivers burr-free hexagons and squares 3-5 times faster than traditional indexing.
-
0.003mm Precision Spindle: High-torque 4000 RPM spindle with 0.003mm runout. The A2-5 taper ensures rigid stability and high concentricity during intermittent Turn-Mill cutting.
-
HT300 Integrally Cast Bed: Heavy-duty HT300 resin sand casting (bed and feet) absorbs vibration from flying cutter impacts, maintaining 0.005mm repeatability during 24/7 production.
-
One-Clamp Turn-Mill Efficiency: Integrated turning, threading, grooving, and polygon milling in a single setup. Eliminates secondary clamping errors and ensures perfect part concentricity.
-
High-Response Motion System: Equipped with 30/30 linear guides and 3210/3210 ball screws. Supports 20m/min rapid speeds for efficient tool retraction and complex profiling.
-
Safety & Setup Optimized: Fully enclosed protective shielding and a suspended handwheel improve operator safety and speed up tool setting for heavy-duty runs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Swing Diameter over Bed | 320 mm |
| Max. Swing Diameter over Carriage | 180 mm |
| X/Z-axis Travel | 340/300 mm |
| X/Z-axis Servo Motor | 6/6 Nm |
| X/Z-axis Rapid Speed | 20 m/min |
| Spindle Run-out | 0.003 mm |
| Repeated Positioning Accuracy | 0.005 mm |
| Spindle Taper | A2-5 |
| Spindle Bore Diameter | 49 mm |
| Max. Bar Diameter Passing Through | 35 mm |
| Main Motor Power | 5.5 Kw |
| Spindle Speed | 4000 rpm |
| Coolant Pump Power | 90 w |
| Hydraulic Station Power | 1.5 Kw |
| Dimensions | 1900x1500x1650 mm |
| Net Weight | 1600 Kg |
Accessory Configurations
| Configuration | Details |
|---|---|
| Polygon Power Head | |
| CNC system | GSK 980 TB3i |
| X/Z axis servo motors | GSK |
| X/Z axis servo drives | GSK |
| Main electrical component | Schneider |
| Hollow rotary oil cylinder | |
| Single-circuit hydraulic station | |
| High-strength spindle | |
| Spindle motor | GSK |
| Ball screw | 3210/3210 |
| Linear guide rail | 30/30 |
| 40 spring collet | |
| Tool post | |
| Lubrication system | |
| Cooling System | |
| Fully enclosed protective sheet metal | |
| Suspended tool setting handwheel |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the advantage of Polygon Turning over traditional Milling?
A: Polygon turning on the TCK35P is significantly faster. By using a synchronized flying cutter, the machine creates flats while the workpiece is rotating, eliminating the need to stop and index the spindle.
Q: What types of precision parts can the TCK35P machine in one setup?
A: The TCK35P High-Efficiency Polygon Turning Lathe processes 2,4,6-sided polygons, tapered hexagons, curved parts, plus turning, threading, and grooving in a single operation.
Q: How does the TCK35P ensure high concentricity in polygon parts?
A: By using a One-Clamp Turn-Mill process, the part is never removed between turning and polygon milling, which eliminates the centering errors common in secondary operations.
