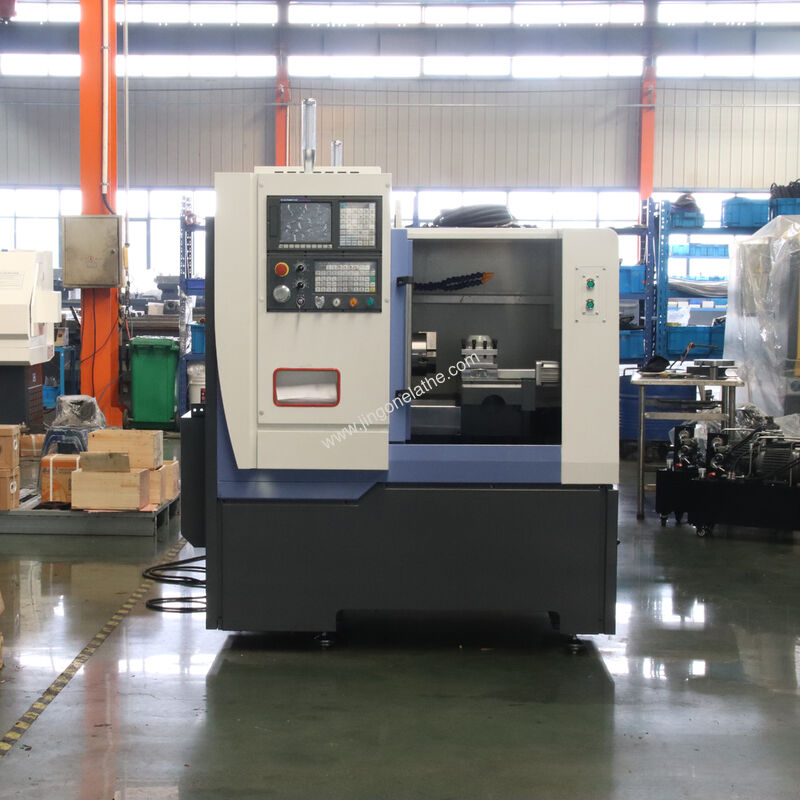

Compact Gang CNC Lathe H32I | Small Precision Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
H32I
Contact Us
Request A Quote
Product Details
Max. Swing Diameter Over Bed:
¢320 Mm
Max. Turning Length:
185 Mm
Spindle Nose Type:
A2-5
Chuck Type:
Hydraulic Chuck HC640
Guide Rail Type:
Linear Guide Rail
Spindle Motor Power:
3.7 Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 7500 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now

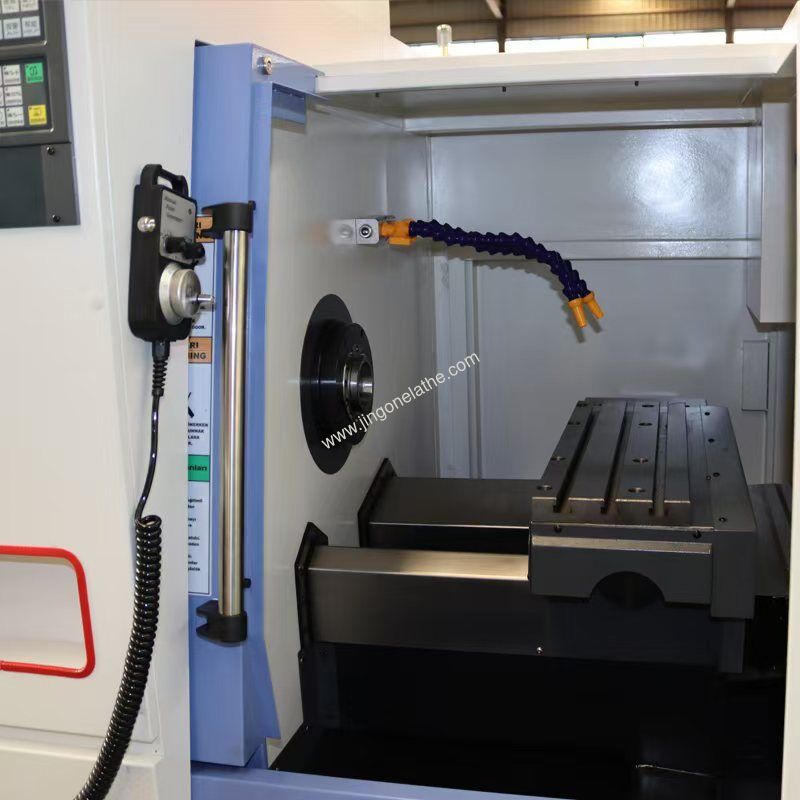

Product Description
Compact Gang Type CNC Lathe H321: ±0.003mm Repeatability for High-Precision Small-Part Machining
Model: H32I | Core Keyword: Compact Gang Type CNC Lathe
Summary
Compact Gang Type CNC Lathe H32I is engineered for high-precision small-part production. Its ±0.003mm positioning repeatability and Ra1.6μm surface roughness ensure consistent, tight-tolerance output for automotive, aerospace, and electronic components.
Equipped with a 3500rpm spindle, 40mm bar capacity, and linear guide rails (X:25mm/Z:30mm), this gang-type lathe supports high-volume, high-speed machining with minimal downtime. Its robust cast iron bed, treated with high-frequency quenching and aging, maintains long-term accuracy stability.
Ideal for contract manufacturers and component shops needing efficient, reliable machining of small disc or shaft parts, the H321 combines compact footprint with industrial-grade performance.

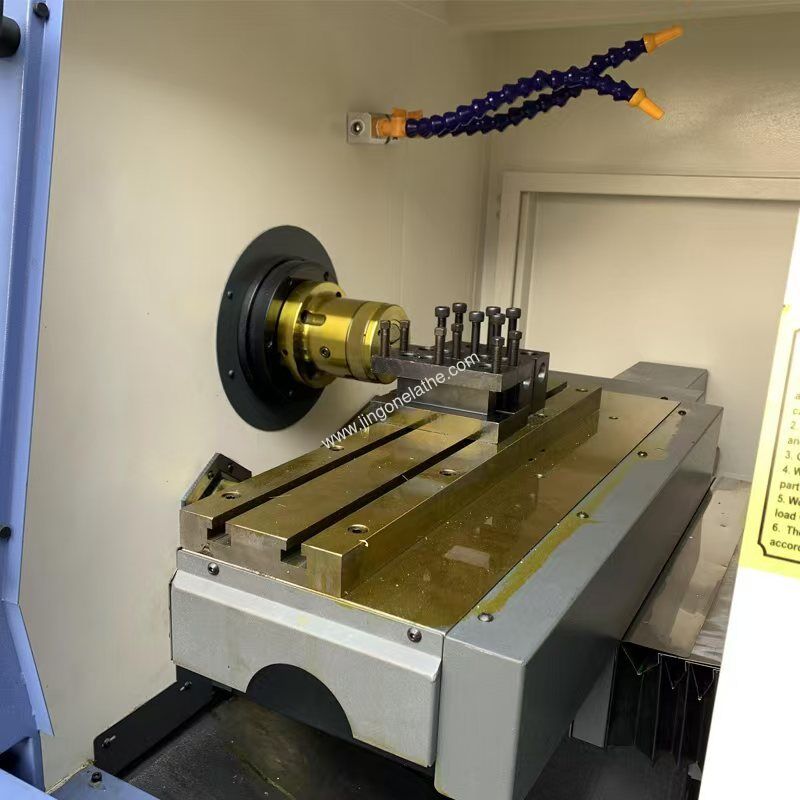

Features
- High-strength cast iron bed with high-frequency quenching and aging treatment to minimize deformation and ensure long-term structural stability
- Linear guide rails (X:25mm/Z:30mm) and precision ball screws deliver ±0.003mm positioning repeatability for tight-tolerance machining
- 3500rpm spindle with A2-5 nose type and 40mm bar capacity enables continuous high-speed production of small shaft parts
- Hydraulic chuck HC640 provides fast, secure workpiece clamping to reduce setup time and improve production efficiency
- 24m/min rapid feed rate (X/Z axes) cuts non-machining time for high-volume small-part runs
- Automatic lubrication system reduces wear on guide rails and screws, lowering maintenance costs and extending component lifespan
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over bed | ¢320 mm |
| Max. swing diameter over cross-slide | ¢70 mm |
| Max. diameter for machining disc parts | ¢320 mm |
| Max. Turning length | 185 mm |
| **Spindle** | |
| Spindle nose type | A2-5 |
| Spindle through-hole diameter | ¢48 mm |
| Bar capacity | ¢40 mm |
| Spindle taper | 44° |
| Spindle speed | 3500 rpm |
| **Chuck** | |
| Chuck type | Hydraulic chuck HC640 |
| **Travel & Feed** | |
| X-axis travel | 280 mm |
| Z-axis travel | 330 mm |
| Rapid feed (X/Z) | 24/24 m/min |
| Min. Setting unit | 0.001 mm |
| **Tool** | |
| Tool shank | 20x20 mm |
| **Guideways & Transmission** | |
| Guide rail type | Linear guide rail |
| Guide rail model | X:25 mm, Z:30 mm |
| Screw model | X:2510 mm, Z:3010 mm |
| **Servo system** | |
| X-axis motor torque | 4 Nm |
| Z-axis motor torque | 4 Nm |
| Spindle motor power | 3.7 Kw |
| **Accuracy** | |
| Periodic axial movement of the spindle | 0.005 mm |
| Radial runout of the positioning cone surface of the spindle chuck | 0.005 mm |
| Repeatability of positioning | X:±0.003 mm, Z:±0.003 mm |
| Diameter consistency | 0.01/150 mm |
| Flatness | 0.02/φ200 mm |
| Accumulated pitch error of threads | 0.010/50 mm |
| Surface roughness | Ra1.6μm |
| **Others** | |
| Dimensions | 1650x1350x1700 mm |
| Weight | 1400 Kg |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine bed | Standard |
| Control system | Standard |
| Spindle motor | Standard |
| Spindle | Standard |
| Linear guide rail | Standard |
| Ball screw | Standard |
| Screw bearing | Standard |
| Automatic lubrication | Standard |
| Coolant pump | Standard |
| Hydraulic station | Standard |
| Hydraulic chuck | Standard |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What production applications are ideal for the H32I Compact Gang CNC Lathe?
A: The H32I Compact Gang Type CNC Lathe excels in high-precision small-part production, including automotive sensors, aerospace fasteners, and electronic connectors, leveraging its ±0.003mm positioning repeatability for tight tolerances.
Q: How does the H32I maintain consistent machining accuracy over time?
A: The H32I Compact Gang CNC Lathe maintains long-term accuracy via its high-strength cast iron bed with high-frequency quenching and aging treatment, paired with linear guide rails to reduce wear and deformation.
Q: What features of the H32I support high-volume small-part production?
A: The H32I Compact Gang Type CNC Lathe features a 3500rpm spindle and 40mm bar capacity, enabling continuous high-volume production of small shaft parts without frequent workpiece changes, boosting operational efficiency.
