Gang Tool CNC Lathe TCK6340
High Speed gang tool cnc lathe
TCK6340 gang tool cnc lathe
3500rpm Spindle cnc gang type lathe
Place of Origin:
Tengzhou, Shandong
Brand Name:
Authorized Partners
Certification:
CE Certifications
Model Number:
TCK6340
Contact Us
Request A Quote
Product Details
Max. Swing Diameter Over Bed:
400mm
Max. Turning Length:
Gang Tools 185mm； Chuck To Live Tools 135mm
Spindle Taper:
MT.6
Chuck Type:
Hydraulic Hollow
Guide Rail Type:
Linear Guide Rail
Spindle Motor Power:
5.5Kw
Highlight:
High Speed gang tool cnc lathe
,TCK6340 gang tool cnc lathe
,3500rpm Spindle cnc gang type lathe
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 10000 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Precision Gang Type CNC Lathe TCK6340 for High-Speed Small Parts Machining
Model: TCK6340 | Core Keyword: Gang type CNC Lathe | CNC Gang Tool Lathe | Small Parts Gang Tool Lathe
Gang Type CNC Lathe Overview

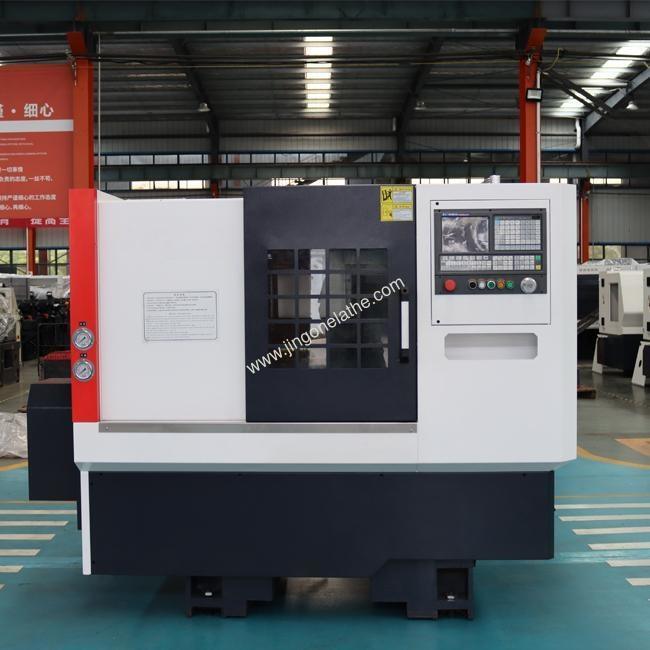

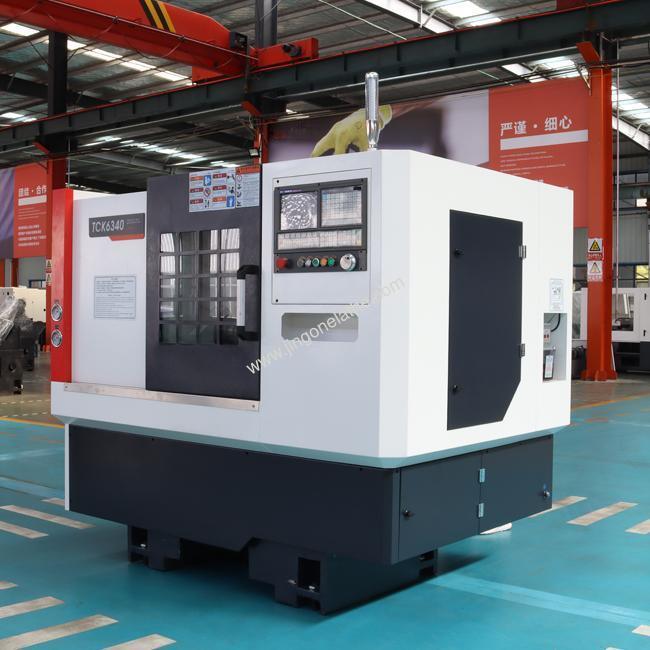

The JingOne TCK6340 is a high-speed, high-efficiency gang type CNC lathe engineered specifically for the rapid, continuous production of small precision components. By replacing traditional rotating turrets with an ultra-responsive gang tooling layout, this CNC gang tool lathe eliminates tool-indexing downtime, delivering lightning-fast cycle times for high-volume manufacturing sectors such as automotive fittings, hydraulic joints, and precision hardware.
Built upon a high-strength, thermally stable machine bed, the TCK6340 features a powerful 5.5 kW spindle motor with an A2-5 nose, delivering stepless speeds up to 3500 RPM. It is equipped with a premium 6’’ hydraulic hollow chuck, supporting a 45 mm maximum bar capacity for seamless automated bar feeding. With rapid traverse rates of 24 m/min on both X and Z axes driven by dual 6 Nm servo motors, this small parts gang tool lathe stands as a premier solution for workshops aiming to maximize throughput while maintaining tight tolerances.
TCK6340 Features

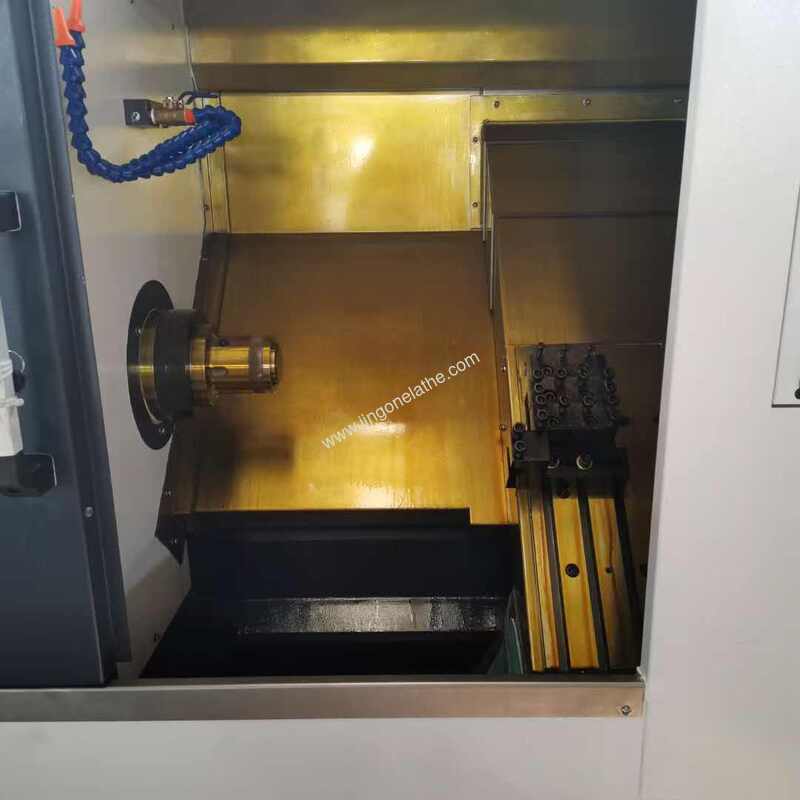

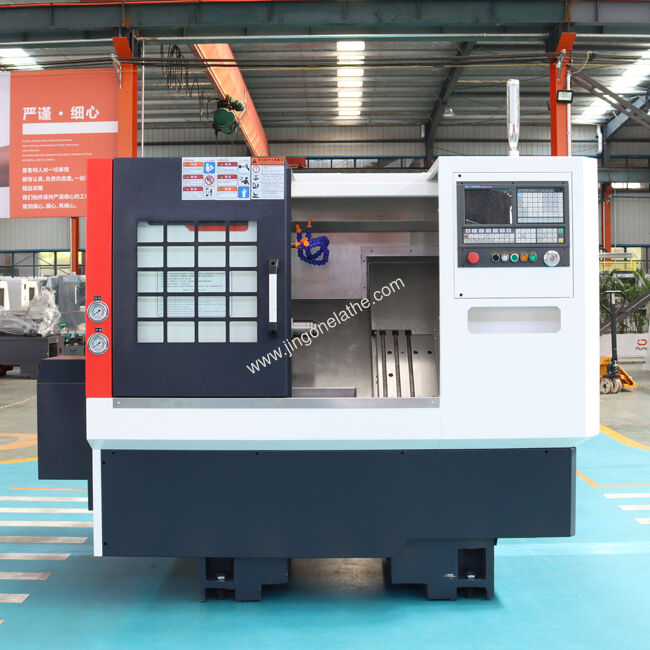

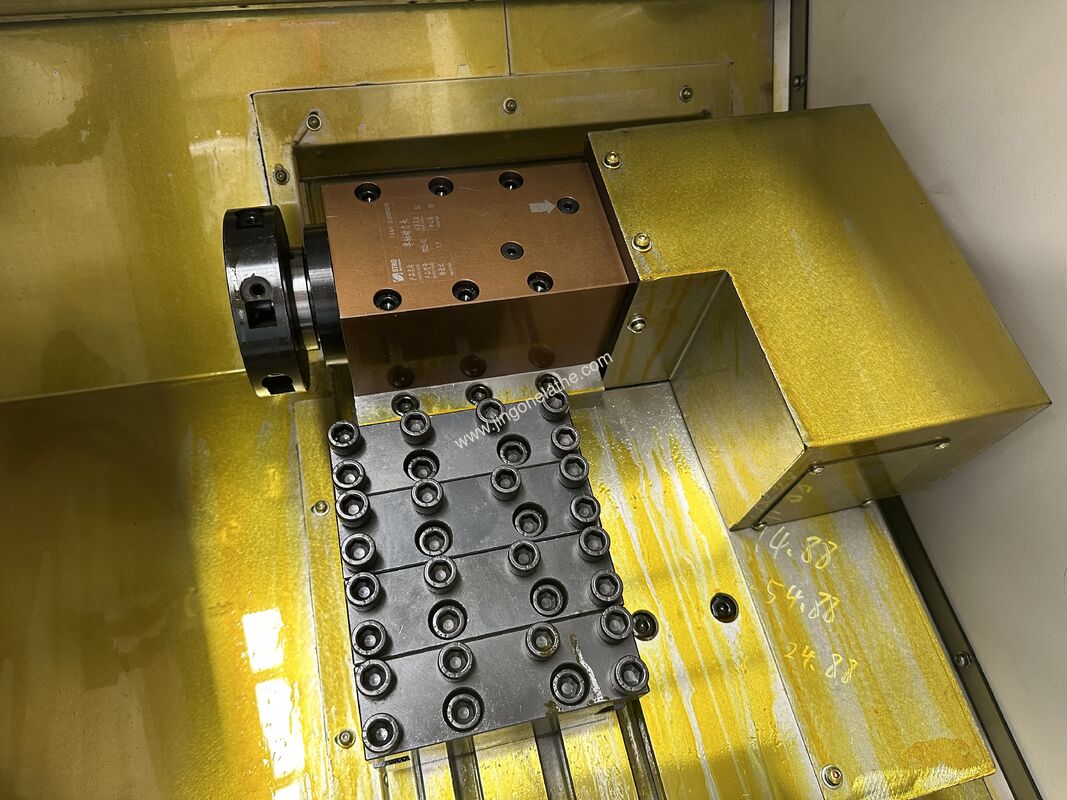

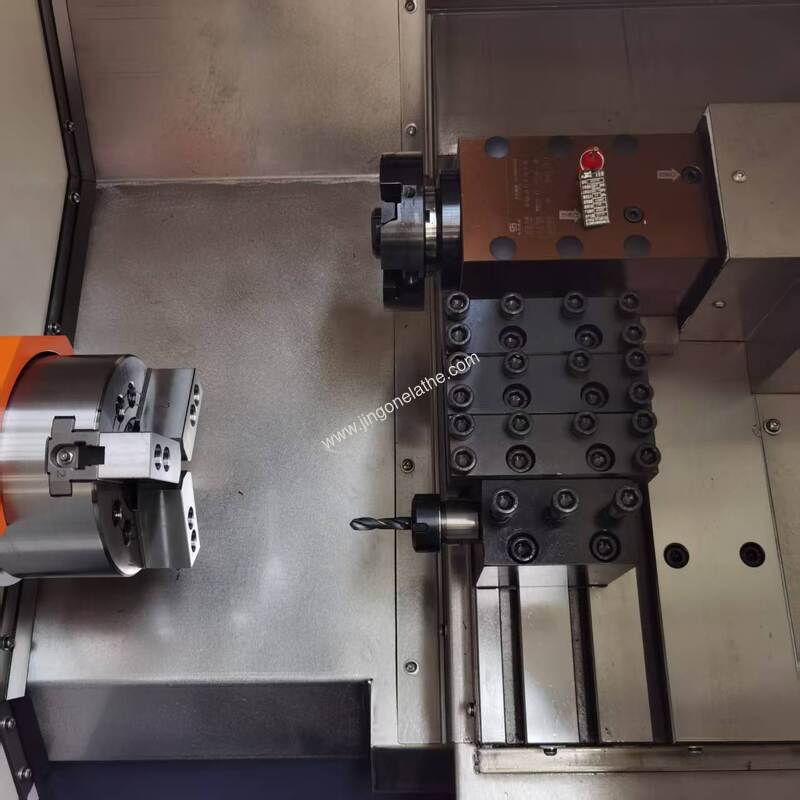

- Zero-Downtime Gang Tooling Layout: The gang tool configuration eliminates mechanical turret indexing, enabling super short time tool transitions. It provides a 185 mm maximum turning length for standard gang setups and 135 mm when integrated with live tools or fly cutter live tooling head.
- Robust Precision Spindle: Features a high-rigidity ShuangQiang (SQ170) spindle with an A2-5 nose and 56 mm through-hole diameter, supported by premium 25TAC62C screw bearings to guarantee stable running at 3500 RPM.
- High-Speed Linear Transmission: Outfitted with world-class PMI linear guide rails (MSR30 series) and NMC precision ball screws (3210), achieving ultra-smooth motion and blistering 24 m/min rapid feed rates on X/Z axes.
- Automated Bar Feeding Compatibility: The standard 6-inch hydraulic hollow chuck paired with a thorough-hole draw tube accommodates bar stocks up to 45 mm in diameter, making the lathe ideal for automated, unmanned long-run production.
- Industrial Auxiliary Equipment: Fully configured with a Hejin automated lubrication pump (3ZK), a high-flow 250W coolant pump, and a dedicated hydraulic station to minimize thermal deformation and extend tooling life.
- World-Class CNC Controller Flexibility: Fully compatible with industry-leading control systems including Fanuc, Siemens, GSK, and Syntec, allowing seamless programming integration into any modern production line.
Technical Specifications
| Parameter | Unit | TCK 6340 |
|---|---|---|
| **Capacity** | ||
| Max. swing diameter over bed | mm | φ400 |
| Max. swing diameter over cross-slide | mm | φ140 |
| Max. diameter for machining disc parts | mm | φ390 |
| Max. Turning length | mm | Gang tools 185 Chuck to live tools 135 |
| **Spindle** | ||
| Spindle nose type | A2-5 | |
| Spindle through-hole diameter | mm | φ56 |
| Bar capacity | mm | φ45 |
| Spindle taper | MT.6 | |
| Spindle speed | rpm | 3500 |
| **Chuck** | ||
| Chuck type | Hydraulic hollow | |
| Chuck size | inch | 6’’ |
| **Travel & Feed** | ||
| X-axis travel | mm | 400 |
| Z-axis travel | mm | 300 |
| Rapid feed (X/Z) | m/min | 24/24 |
| Min. Setting unit | mm | 0.001 |
| **Guideways & Transmission** | ||
| Guide rail type | Linear guide rail | |
| Guide rail model | mm | X: MSR30S2SSF1+R760 Z: MSR30S2SSF1+R760 |
| Screw model | mm | X: 3210-630-840 Z: 3210-445-703 |
| **Servo system** | ||
| X-axis motor torque | Nm | 6 |
| Z-axis motor torque | Nm | 6 |
| Spindle motor power | Kw | 5.5 |
| **Others** | ||
| Dimensions | mm | 2200x1530x1780 |
| Weight | Kg | 2200 |
Configurations
| Main Parts | Configuration |
|---|---|
| Machine bed | High-strength cast iron with treatment |
| Control system | Optional Fanuc/Siemens/GSK/Syntec CNC systems |
| Spindle motor | 5.5Kw |
| Spindle | A2-5 nose, MT.6 taper, 3500rpm |
| Linear guide rail | PMI MSR30S2SSF1+R760 |
| Ball screw | NMC 3210 model |
| Screw bearing | Included |
| Automatic lubrication | Included |
| Coolant pump | Included |
| Hydraulic station | Included |
| Hydraulic chuck | 6’’ hollow type |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands to protect the 2200kg TCK6340 lathe during long-distance shipping.
Warranty: Full 12 months warranty covering core mechanical systems (spindle, linear guide rails, bed structure).
Lead Time & Pricing: 60-day production lead time; 30-day price validity on all quotes.
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits). Local language manuals and training videos are provided for easy operation.
Spare Parts: Dealer-priced spare parts available globally to minimize downtime.
Export Coverage: Exported to 50+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets, with 3000+ successful installations.
Customs Documentation: Complete export documentation provided, including CE, ISO9001, ISO14001 certificates, commercial invoice, packing list, and bill of lading.
FAQ
Q: What workpiece sizes can the TCK6340 high speed gang tool CNC lathe handle?
A:
The JingOne TCK6340 is a specialized small parts gang tool lathe optimized for chucking and bar-fed tasks:
-
Swing Diameters: It supports a 400 mm maximum swing diameter over bed and 390 mm for machining disc parts.
-
Bar Capacity: Features an A2-5 spindle nose with a 56 mm spindle through-hole, allowing a maximum bar capacity of 45 mm to pass through its standard 6-inch hydraulic hollow chuck for automated bar-feeder processing.
-
Machining Travel: Delivers a generous 400 mm X-axis travel and 300 mm Z-axis travel with a minimum setting unit of 0.001 mm.
Q: How does the TCK6340 maintain long-term precision stability?
A:
Despite its compact footprint, the TCK6340 is built with top-tier industrial components to retain strict accuracy under continuous workloads:
-
Guideways & Screws: It utilizes premium PMI linear guide rails and NMC 3210 ball screws backed by high-precision 25TAC62C angular contact bearings.
-
Spindle & Power: Incorporates a rigid ShuangQiang spindle driven by dual 6 Nm high-torque servo motors on both axes.
-
Thermal Control: Features a Hejin automatic lubrication system and a 250W coolant pump to handle friction and eliminate machining drift.
Q: Can the TCK6340 be integrated into automated high-volume production lines?
A: Yes, the TCK6340 high speed gang tool CNC lathe supports optional chip conveyors, robot interfaces, and bar feeders to integrate with automated production systems.
