Product Description
High-Efficiency CNC Polygon Turning Machine with Fly-Cutter Live Tooling | Designed for Fasteners, Connectors, Hardware, Pneumatic and Hydraulic components
Model: TCK35P | Core Keyword: High-Efficiency Polygon Turning Machine
Summary

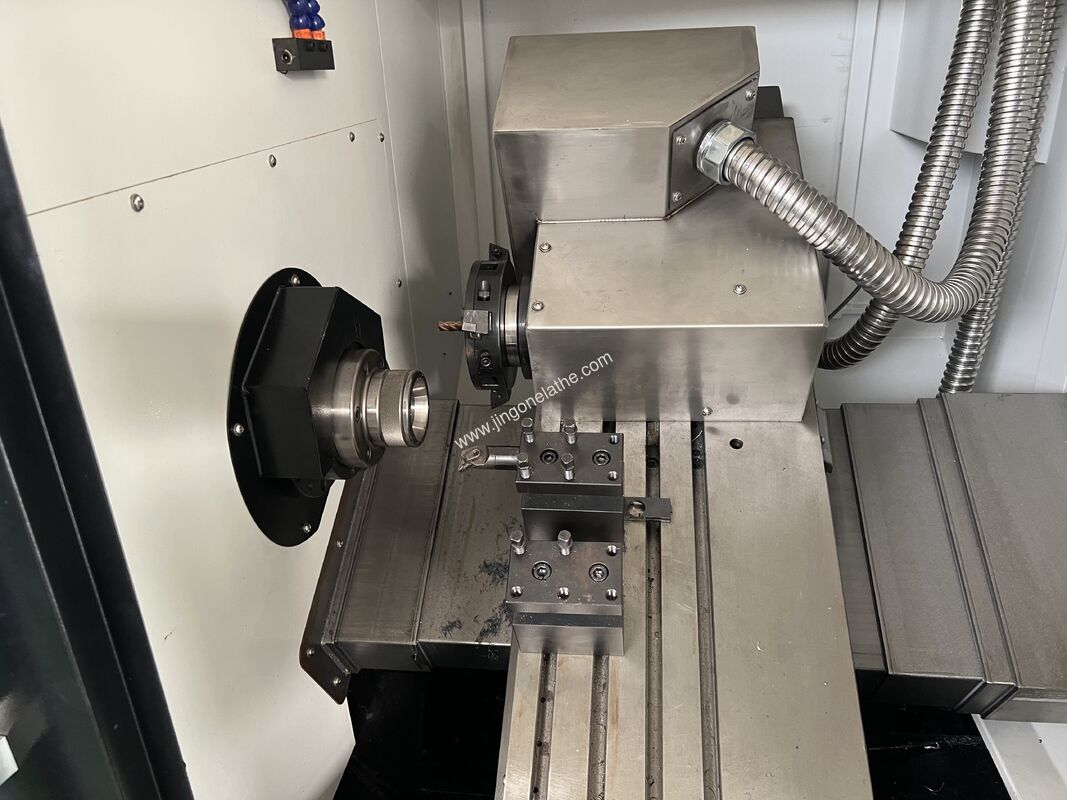

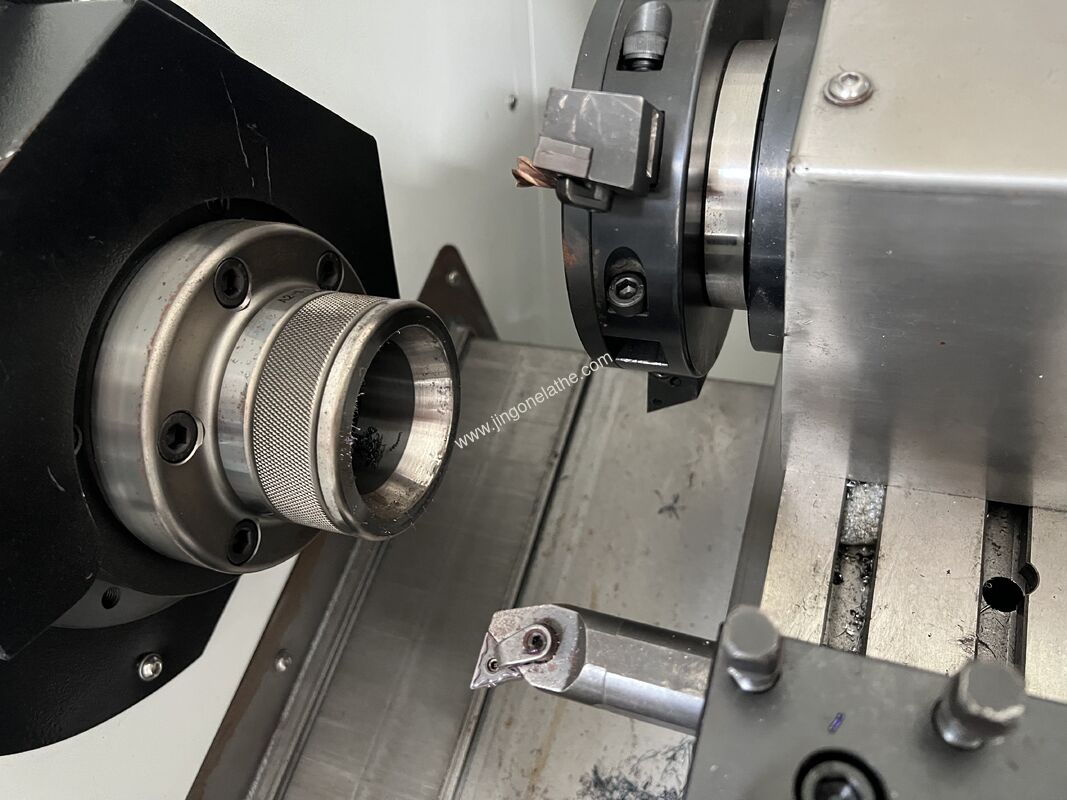

Equipped with a high-performance fly-cutter live tooling head, the Polygon Turning Machine TCK35P is built for one-clamp multi-process machining of precision polygon parts. With 0.003mm spindle runout and 4000 RPM spindle speed, it eliminates secondary clamping errors to ensure tight concentricity.

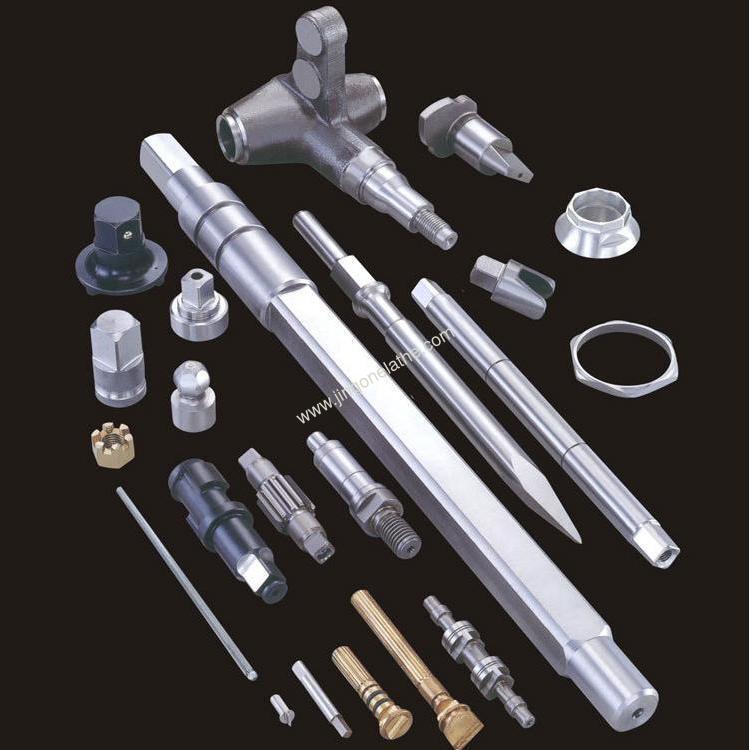

It achieves fast, high-precision machining of squares, hexagons, octagons, and other polygonal flats directly alongside standard cylindrical turning—drastically reducing cycle times in general workshop production. It is suitable for mass production of general-purpose fasteners, connectors, hardware, pneumatic and hydraulic components, etc.

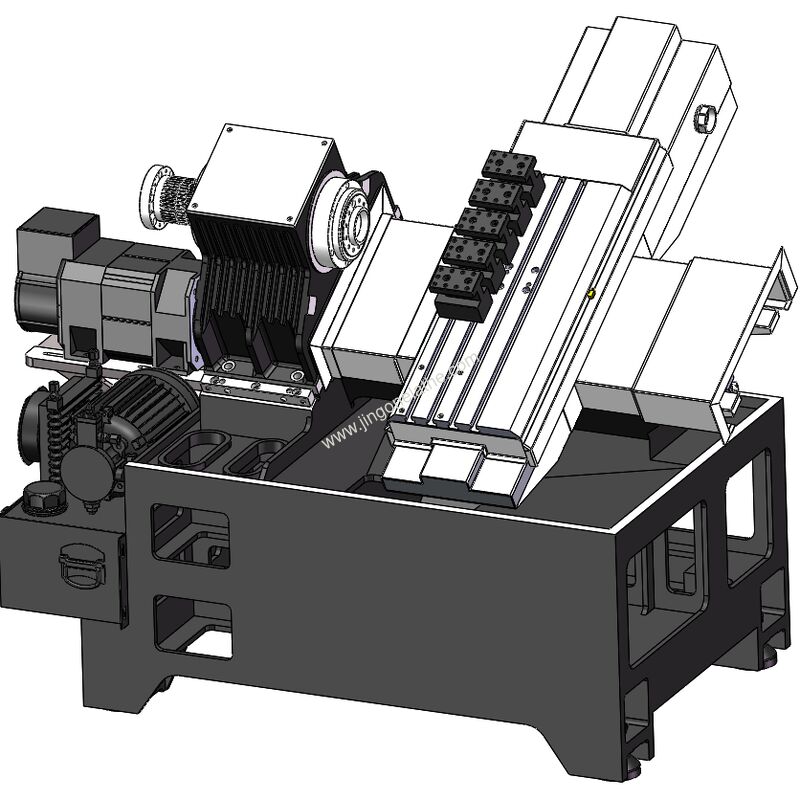

Equipped with an integrally cast bed and ball linear guides, this polygon machine maintains long-term positioning accuracy and reduces unplanned downtime for heavy-duty production runs.
Features
- Integrally cast bed feet and body for high rigidity and vibration damping during high-speed machining
- 0.003mm spindle runout and 0.005mm repeated positioning accuracy for ultra-precise part production
- 4000 RPM spindle with A2-5 taper enables fast, efficient multi-process operations without re-clamping
- Ball linear guide rails (30/30) and ball screws (3210/3210) deliver smooth, precise axis movement with minimal wear
- One-clamp processing capability eliminates secondary clamping errors, ensuring high concentricity for polygon and turned parts

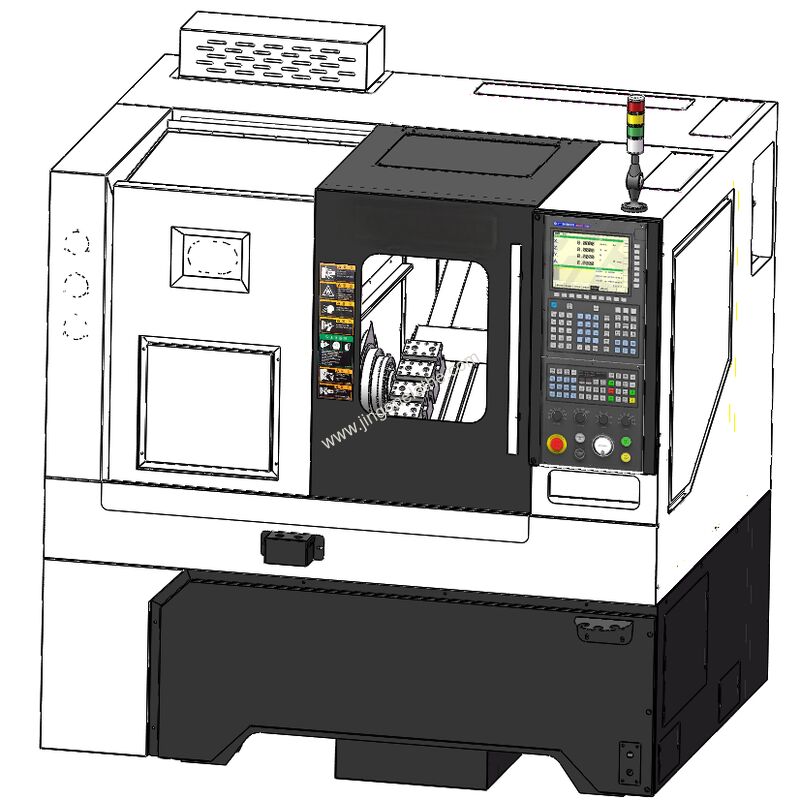

- Fully enclosed protective sheet metal and suspended tool setting handwheel enhance operator safety and setup efficiency
- Supports machining of 2,4,6-sided polygons, tapered hexagons, curved components, plus standard turning, threading, and grooving tasks
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Swing Diameter over Bed | 320 mm |
| Max. Swing Diameter over Carriage | 180 mm |
| X/Z-axis Travel | 340/300 mm |
| X/Z-axis Servo Motor | 6/6 Nm |
| X/Z-axis Rapid Speed | 20 m/min |
| Spindle Run-out | 0.003 mm |
| Repeated Positioning Accuracy | 0.005 mm |
| Spindle Taper | A2-5 |
| Spindle Bore Diameter | 49 mm |
| Max. Bar Diameter Passing Through | 35 mm |
| Main Motor Power | 5.5 Kw |
| Spindle Speed | 4000 rpm |
| Coolant Pump Power | 90 w |
| Hydraulic Station Power | 1.5 Kw |
| Dimensions | 1900x1500x1650 mm |
| Net Weight | 1600 Kg |
Accessory Configurations
| Configuration | Details |
|---|---|
| Machine frame | Integrally cast bed feet and bed body |
| CNC system | GSK 980 TB3i |
| X/Z axis servo motors | GSK |
| X/Z axis servo drives | GSK |
| Main electrical component | Schneider |
| Hollow rotary oil cylinder | |
| Single-circuit hydraulic station | |
| High-strength spindle | |
| Spindle motor | GSK |
| Ball screw | 3210/3210 |
| Linear guide rail | 30/30 |
| 40 spring collet | |
| Tool post | |
| Lubrication system | |
| Cooling System | |
| Fully enclosed protective sheet metal | |
| Suspended tool setting handwheel |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How does a polygon turning machine hexagons and squares without secondary milling?

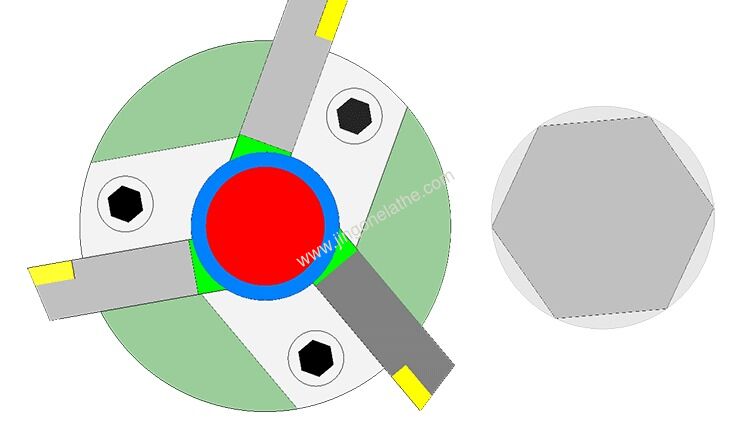

A: The polygon turning machine use a specialized synchronized fly-cutter live tool head that rotates in a specific speed ratio relative to the main spindle. As both the workpiece (rotating up to 4000 rpm) and the fly-cutter spin simultaneously, the synchronized multi-axis interpolation generates flat surfaces. This allows the machine to mill squares, hexagons, and octagons in a single setup on cylindrical bars, completely replacing the traditional, time-consuming secondary milling process on separate machines.
Q: What are the capacity limits and bar-feeding specs of this compact polygon lathe?
A: The TCK35P High-Efficiency Polygon Turning Lathe offers robust capacity for industrial workshops:
- Max. swing diameter: 320mm over bed/ 180mm over carriage
- X/Z-axis travel: 340mm/300mm
- Bar capacity: Features an A2-5 taper spindle with a 49mm diameter bore, allowing a maximum bar passing diameter of 35mm.
- With a automatic bar-feeder, it can meet requirements of batch production.
Q: What maintenance steps reduce downtime for the TCK35P plygon lathe machine?
A: Regular lubrication of ball linear guides and spindle bearings, plus annual hydraulic station inspections, keep your High-Efficiency Polygon Turning Solution running reliably.
