Heavy Duty Manual Metal Lathe CW61100: 3-Ton Load Capacity with 600mm Hardened Guideway
Heavy Duty Manual Metal Lathe CW61100: 3-Ton Load Capacity with 600mm Hardened Guideway
Place of Origin:
Anyang, Henan
Brand Name:
Authorized Anyang Product
Certification:
CE Certifications
Model Number:
CW61100
Contact Us
Request A Quote
Product Details
Max.swing Over Bed：:
1000mm
Width Of The Bed Guide Rail：:
600mm
Load-bearing::
3 Tons
Main Motor Power::
22Kw
Spindle Hole Font End Taper:
1:20
Tool Post Rotation Angle:
±90°
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 22600 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

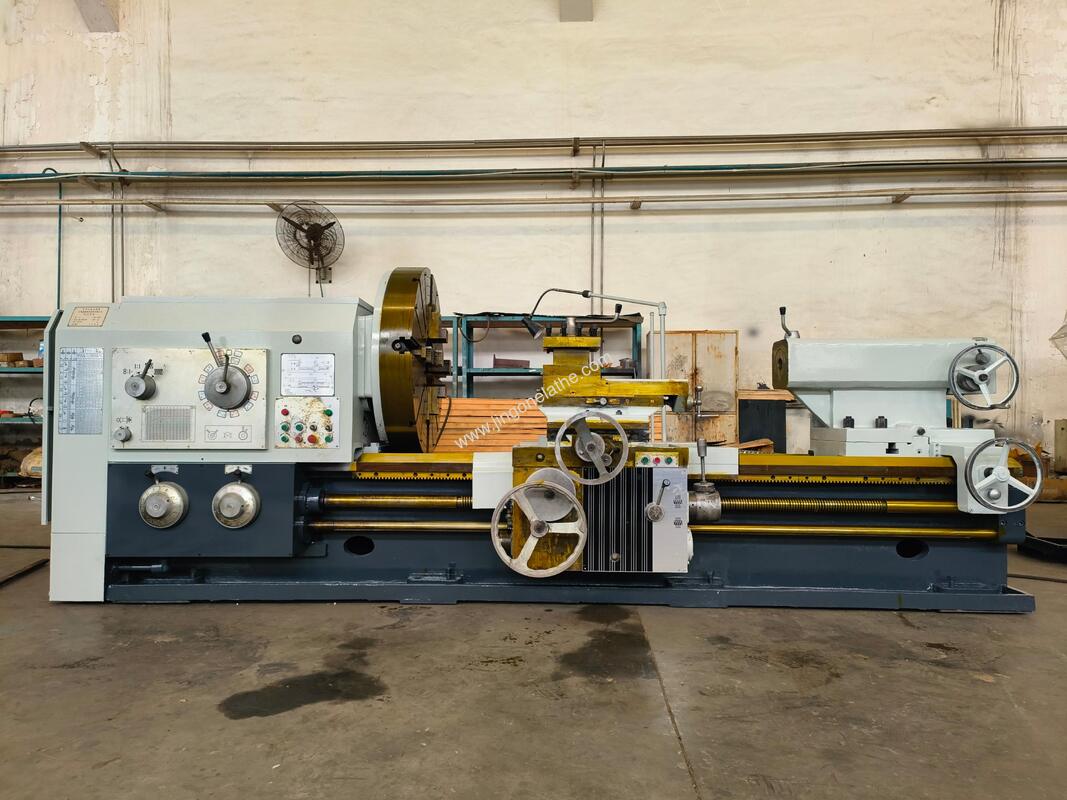

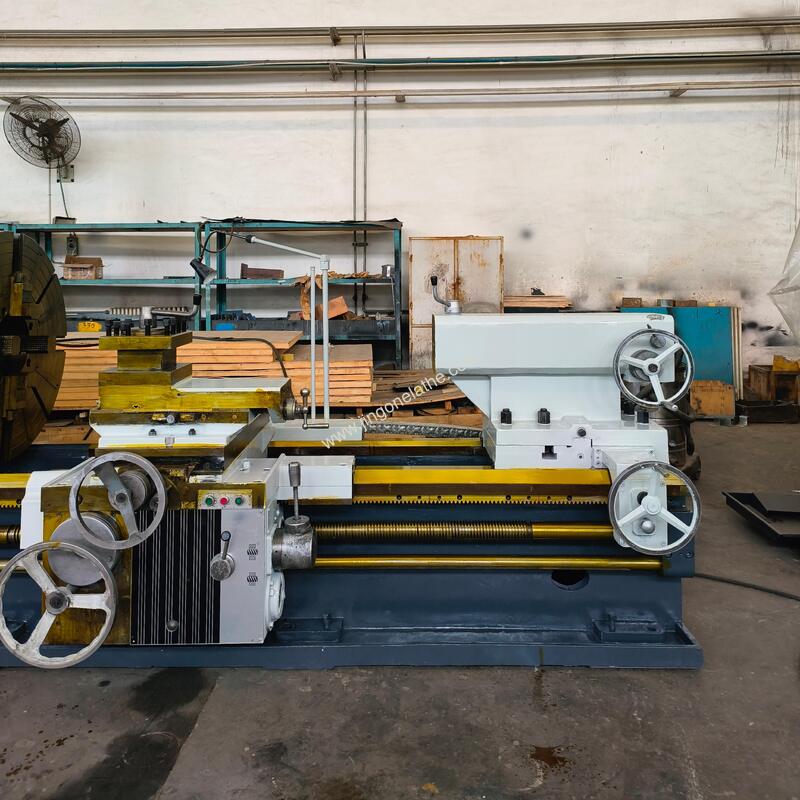

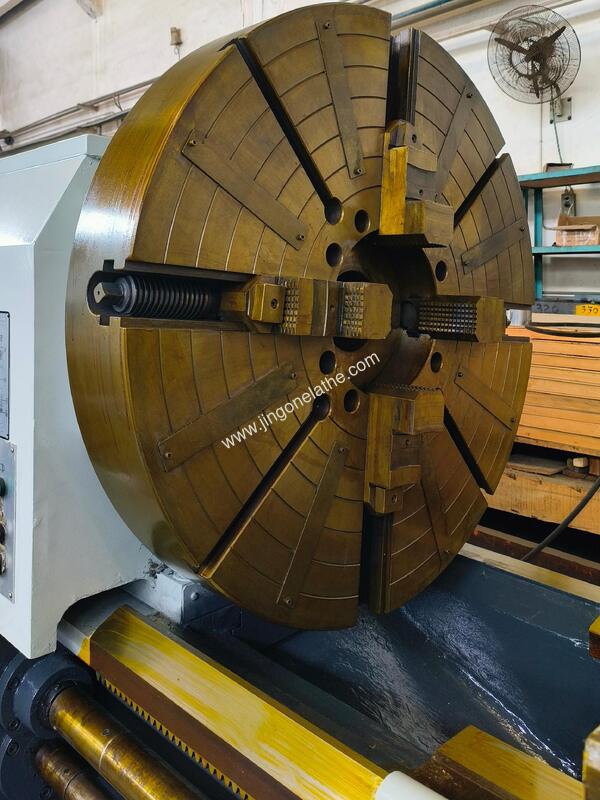

Heavy Duty Manual Metal Lathe CW61100: 3-Ton Load Capacity with 600mm Hardened Guideway
Model: CW61100 | Core Keyword: heavy duty manual lathe metal
Summary
Heavy duty manual metal lathe CW61100 delivers 3-ton turning capacity with a 600mm medium-frequency quenched guideway and anti-creep friction plates.
Featuring a single-piece cast iron bed with internal rational rib architecture, it prevents torsional twisting and ensures jitter-free ultra-low-speed roughing, reducing unplanned downtime for large shaft or disc machining.
This CW61100 lathe is optimized for job shops and heavy machinery manufacturers processing large metal components up to 10000mm in length.
Features
- Single-piece cast iron bed with internal rational rib architecture eliminates torsional twisting during high-load machining
- 600mm medium-frequency quenched guideway with anti-creep friction plates maintains long-term precision stability
- 11kW main motor with coolant system supports 6-800 RPM spindle speed range for ultra-low-speed roughing
- 21-speed gearbox delivers consistent torque for 3-ton turning with carbide tools
- Includes standard accessories: 3-jaw chuck, coolant device, dead center, and anchor bolts
Technical Specifications
| Items | Unit | CW61100 |
|---|---|---|
| **Capacity** | ||
| Max. swing over bed | mm | 1000 |
| Max. swing over carriage | mm | 680 |
| Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000 |
| Max. Turning length | mm | 850/1350/1850/2850/3850/4850/5850/7850/9850 |
| Width of the bed guide rail | mm | 600 |
| **Spindle** | ||
| Spindle nose | C11 (optional C15) | |
| Spindle hole font end taper | 1:20 | |
| Center taper | MT.6 | |
| Spindle through-hole | mm | ¢100(optional 140) |
| Number of spindle rotation types | 18 | |
| Spindle speed range | rpm | 6-800 |
| **Feed** | ||
| Number of longitudinal and transverse feed rates | 64 | |
| Longitudinal feed rate range(1:1) | mm/r | 0.1-1.52 |
| Longitudinal feed rate range(16:1) | mm/r | 1.6-24.32 |
| Ratio of transverse feed rate to longitudinal feed rate | 1:2 | |
| Rapid traverse speed of the carriage | mm/min | 4000 |
| Screw pitch | mm | 12 |
| **Thread capacity** | ||
| Metric threads | mm | 50 types 1-240 |
| Inch threads | T.P.I | 26 types 14-1 |
| Module threads | mm | 53 types 0.5-120 |
| Dia. threads | DP | 24 types 28-1 |

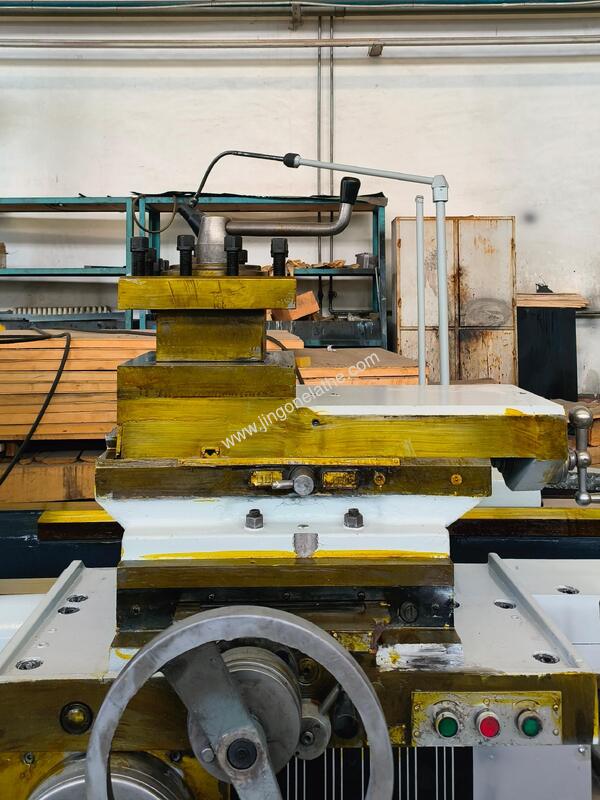

| **Tool post** | ||
| Vertical distance from the spindle center to the tool mounting base surface | mm | 33 |
| Tool cross-section | mm | 32x35 |
| Tool post rotation angle | ±90° | |
| Max.allowable cutting force PZ | N | 19600 |
| Lower tool post travel | mm | 500 |
| Upper tool post travel | mm | 200 |

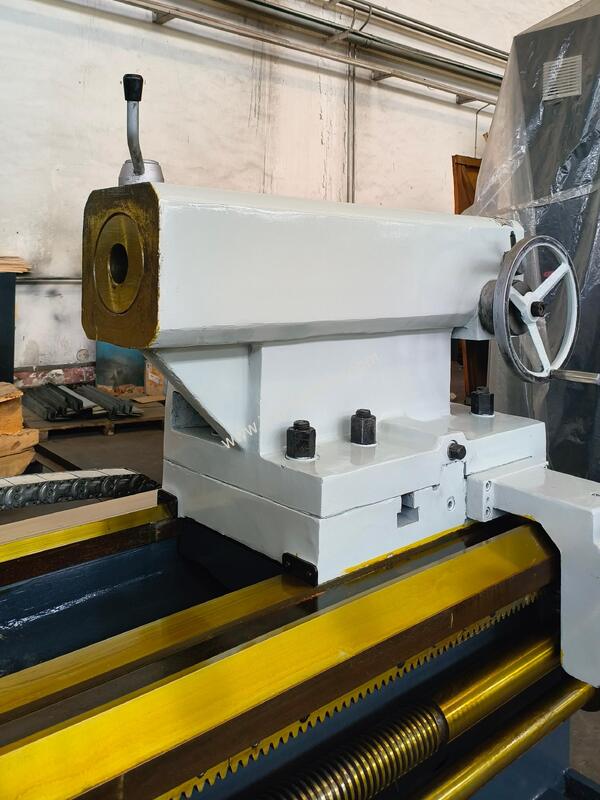

| **Tailstock** | ||
| Sleeve diameter | mm | ¢100 |
| Sleeve travel | mm | 250 |
| Center sleeve taper | MT.6 | |
| **Power** | ||
| Main motor power | Kw | 11 |
| Main motor speed | rpm | 1460 |
| Rapid motor power | Kw | 1.1 |
| Rapid motor speed | rpm | 1450 |
| Coolant pump motor power | W | 90 |
| Coolant pump flow | L/min | 25 |
| **Lubrication System** | ||
| Working pressure of the oil cylinder | Mpa | 0.98-1.47 |
| Gear pump flow | L/min | 6 |
| Gear pump speed | rpm | 1450 |
| **Weight&Dimensions** | ||
| CW61100 1000 | Height(mm) | 1730 |
| CW61100 1500 | Height(mm) | 1730 |
| CW61100 1000 | Width(mm) | 1450 |
| CW61100 1500 | Width(mm) | 1450 |
| CW61100 1000 | Length(mm) | 3180 |
| CW61100 1500 | Length(mm) | 3670 |
| CW61100 1000 | Net weight(kg) | 4380 |
| CW61100 1500 | Net weight(kg) | 4800 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 3-Jaw chuck | Standard |
| Lightning device | Standard |
| Coolant device | Standard |
| Center sleeve | Standard |
| Dead Center | Standard |
| Anchor bolts | Standard |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
Net weight: 4380-4800kg based on workpiece length
FAQ
Q: What is the maximum load capacity of this CW61100 lathe?
A: This 3-ton heavy duty manual metal lathe CW61100 with 600mm guideway safely handles large workpieces up to 3000kg.
Q: How does this lathe maintain precision during high-load machining?
A: The single-piece cast iron bed and 600mm hardened guideway of this heavy duty manual metal lathe prevent torsional twisting and jitter.
Q: Which industries benefit most from this CW61100 lathe?
A: Job shops and heavy machinery manufacturers use this 3-ton heavy duty manual metal lathe for large shaft and disc machining.
