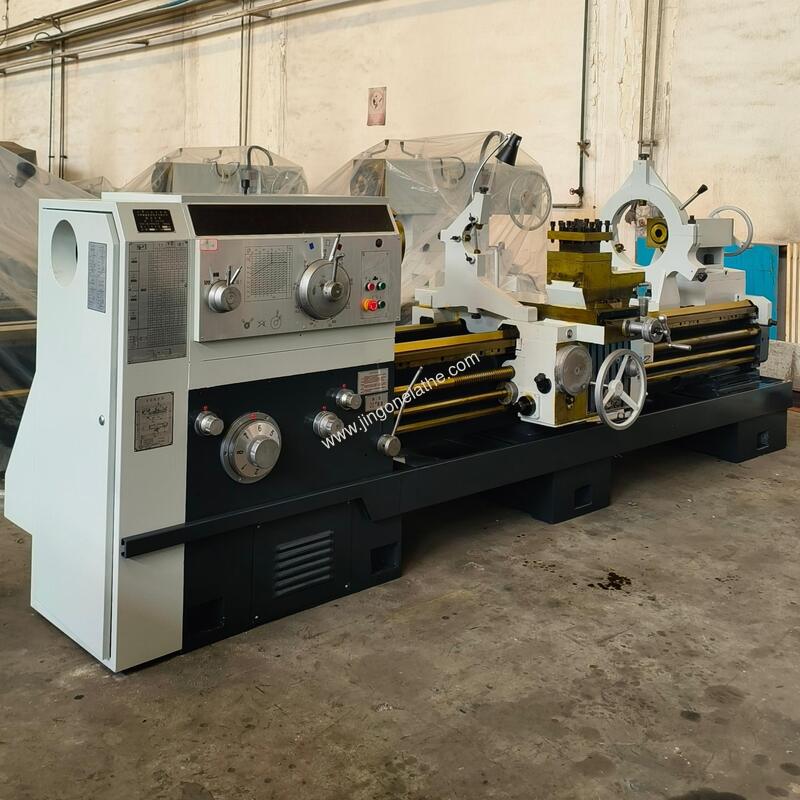

Heavy Duty CW6194B Mechanical Lathe: 940mm Swing & High Stability For Oversized Workpieces
Heavy Duty CW6194B Mechanical Lathe: 940mm Swing & High Stability For Oversized Workpieces
Place of Origin:
Anyang, Henan
Brand Name:
Authorized Anyang Product
Certification:
CE Certifications
Contact Us
Request A Quote
Payment & Shipping Terms
Minimum Order Quantity
1
Price
21000 USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

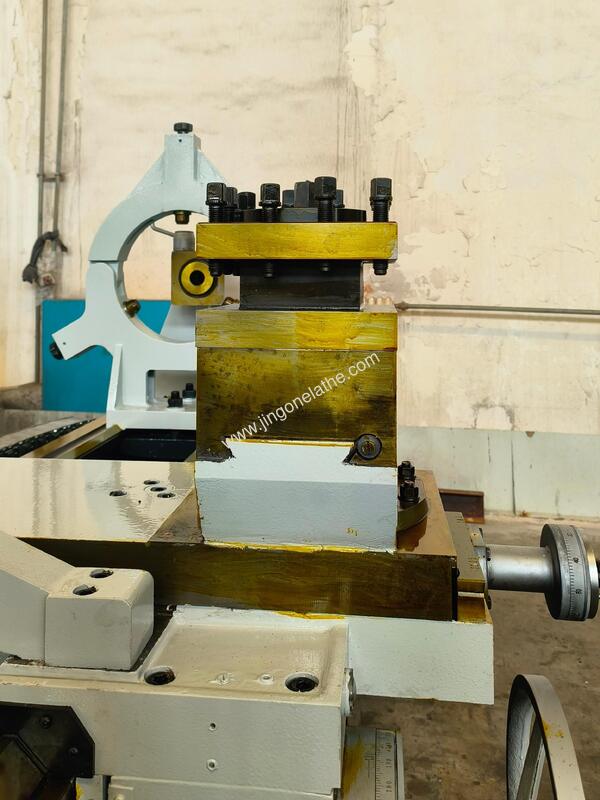

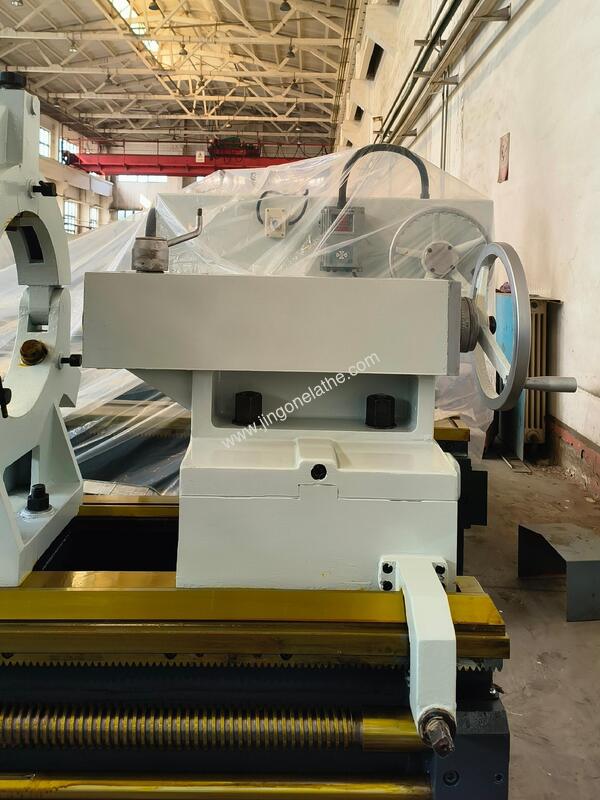

Heavy Duty CW6194B Mechanical Lathe: 940mm Swing & High Stability for Oversized Workpieces
Model: CW6194 | Core Keyword: Heavy duty mechanical lathe
Summary
Heavy Duty CW6194B Mechanical Lathe is a robust horizontal machine engineered for turning large internal/external cylinders and conical surfaces.
With a 940mm swing over bed, 660mm swing over carriage, 550mm hardened guideway, and 3-support spindle with 100mm through-hole, it processes metric, imperial, module, and diametral pitch threads with cylindricity error ≤0.04mm over 300mm.
This lathe is perfect for shipbuilding, power generation, and heavy equipment industries machining oversized, high-torque components.
Features
- High-torsion bed cast from premium cast iron, with 550mm width and induction-hardened guideway for extreme wear resistance and precision retention
- 3-support spindle structure with 100mm through-hole, delivering high stiffness and torque for heavy-duty cutting operations
- 18-speed wide speed range for optimal rotational speed selection, supporting direct metric, imperial, module, and diametral pitch thread cutting
- Polytetrafluoroethylene guide rail soft belts absorb vibration and reduce tool wear during heavy cutting
- Carriage rapid traverse mechanism at 4000mm/min reduces non-cutting time for large workpieces
- Includes 3-jaw chuck (¢325), coolant device, and MT.5 dead center as standard accessories
Technical Specifications
| Items | Unit | CW6194B |
|---|---|---|
| Max. swing over bed | mm | 940 |
| Max. swing over carriage | mm | 660 |
| Max. workpiece length | mm | 2000 |
| Max. Turning length | mm | 1850 |
| Width of the bed guide rail | mm | 550 |
| Spindle nose | C11 | |
| Spindle hole font end taper | mm | 1:20 120 |
| Center taper | M.T.5 | |
| Spindle through-hole | mm | ¢100 |
| Spindle speed stages | 18 | |
| Spindle speed range | rpm | 6-800 |
| Feed numbers on longitudinal and transverse | 64; 0.1-24.32 | |
| Ratio: Transverse to longitudinal | mm | 1:2 |
| Screw pitch | mm | 12 |
| Metric threads | mm | 50 types 1-240 |
| Inch threads | T.P.I | 26 types 14-1 |
| Module threads | mm | 53 types 0.5-120 |
| Dia. threads | D.P.I | 24 types 28-1 |
| Rapid traverse speed of carriage | mm/min | 4000 |
| Swivel angle of the compound rest | ±90° | |
| Max.allowable tool section | mm | 32 |
| Upper tool post stroke | mm | 200 |
| Lower tool post stroke | mm | 570 |
| Sleeve diameter | mm | ¢100 |
| Sleeve travel | mm | 250 |
| Center sleeve taper | MT.5 | |
| Main motor power | Kw | 11 |
| Main motor speed | rpm | 1460 |
| Rapid motor power | Kw | 1.1 |
| Rapid motor speed | rpm | 1450 |
| Coolant pump motor power | W | 90 |
| Coolant pump flow | L/min | 25 |
| Working pressure of the oil cylinder | Mpa | 0.98-1.47 |
| Gear pump flow | L/min | 6 |
| Gear pump speed | rpm | 1450 |
Accessory Configurations
| Accessories | Parameter |
|---|---|
| 3-Jaw chuck | ¢325 |
| Lightning device | 24V 40W |
| Coolant device | |
| Center sleeve | ¢120/MT.5 |
| Dead Center | MT.5 |
| Anchor bolts | M24 |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum swing over carriage of the CW6194B lathe?
A: The Heavy Duty CW6194B Mechanical Lathe offers a 660mm swing over carriage, accommodating large diameter workpieces up to 940mm swing over bed.
Q: How does the CW6194B reduce vibration during heavy cutting?
A: The Heavy Duty CW6194B Mechanical Lathe uses polytetrafluoroethylene guide rail soft belts to absorb vibration and maintain cutting precision under heavy loads.
Q: What is the main motor power of the CW6194B lathe?
A: The Heavy Duty CW6194B Mechanical Lathe is equipped with an 11kW main motor, delivering sufficient torque for powerful heavy-duty cutting operations.
