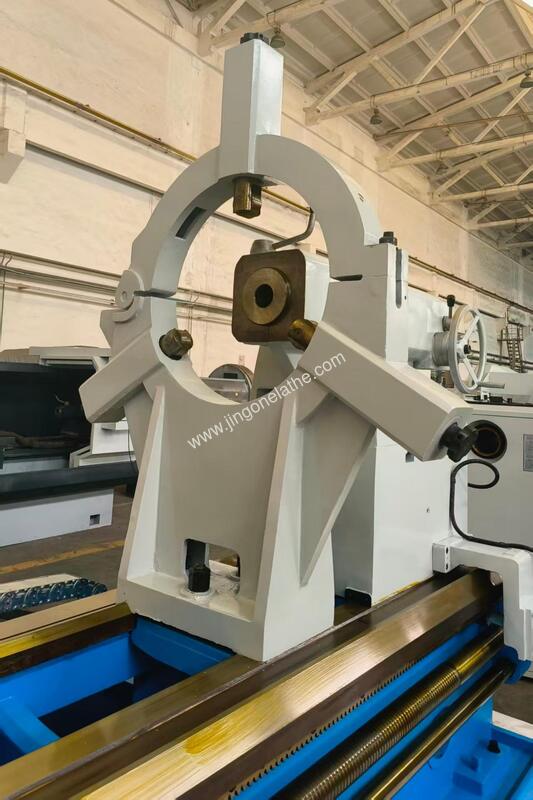

Heavy Duty Manual Metal Lathe CW61160 | Maritime/Energy Parts
Place of Origin:
Anyang, Henan
Brand Name:
Authorized Anyang Product
Certification:
CE Certifications
Model Number:
CW61160
Contact Us
Request A Quote
Product Details
Max.swing Over Bed：:
1640mm
Width Of The Bed Guide Rail：:
755mm
Load-bearing::
6 Tons
Main Motor Power::
22Kw
Tool Cross-section:
45x45 Mm
Spindle Through-hole:
¢130 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 36900 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
6-Ton Heavy Duty Manual Metal Lathe CW61160: Stable Precision for Large Component Machining
Model: CW61160 | Core Keyword: heavy duty manual metal lathe
Summary
Heavy duty manual metal lathe CW61160 supports 6-ton static load between centers, ideal for machining large maritime, energy, and mining components. Its 755mm wide bed guide rail minimizes deflection during deep cutting operations.
Equipped with a 22kW main motor and oil-bath cooling system, this CW61160 lathe offers 21 forward spindle speeds (3.15–315 RPM) for consistent torque when using carbide tools. The synchronized upper tool post enables accurate short and long taper machining.
This manual metal lathe handles swing over bed up to 1640mm and workpiece lengths from 1500mm to 17100mm, with a 160mm oversized tailstock sleeve that prevents shaft whip during heavy-duty turning tasks.
Features
- 755mm wide cast iron bed guide rail reduces deflection and maintains long-term precision stability
- 22kW main motor with oil-bath cooling system delivers 21 forward spindle speeds (3.15–315 RPM) for 6-ton turning with carbide tools
- 160mm oversized tailstock sleeve and synchronized upper tool post enable accurate short/long taper machining
- 45x45mm tool holder cross-section eliminates shaft whip during deep cutting operations
- Standard accessories include 4-jaw chuck, coolant device, support tool box, and operation manual
- Customizable workpiece lengths from 1500mm to 17100mm for flexible large-component production
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing over bed | 1640 mm |
| Max. swing over carriage | 1250 mm |
| Max. workpiece length | 1500/2000/3000 mm |
| Max. Turning length | 1300/1800/2800 mm |
| Width of the bed guide rail | 755 mm |
| **Spindle** | |
| Spindle through-hole | ¢130 mm |
| Spindle hole front end taper | Metric 140 mm |
| Number of spindle forward rotation types | 21 |
| Spindle forward speed range | 3.15–315 rpm |
| Number of spindle reverse rotation types | 12 |
| Spindle reverse speed range | 3.5–291 rpm |
| **Feed** | |
| Number of longitudinal and transverse feed rates per spindle revolution | 56 |
| Longitudinal feed rate range | 0.1–12 mm |
| Transverse feed rate range (half of longitudinal) | 0.05–6 mm |
| Upper tool post feed rate range (1/4 of longitudinal) | 0.025–3 mm |
| **Thread Capacity** | |
| Metric threads | 44 types (1–120 mm) |
| Inch threads | 31 types (28–1/4 T.P.I) |
| Module threads | 45 types (0.5–60 mm) |
| Dia. threads (DP) | 38 types (56–1/2) |
| **Tool Post** | |
| Vertical distance from spindle center to tool mounting base | 48 mm |
| Tool cross-section | 45x45 mm |
| Tool post rotation angle | ±90° |
| Max. travel of the saddle | 1450/1950/2950 mm |
| Max. transverse travel of lower tool post | 630 mm |
| Max. travel of upper tool post | 300 mm |
| Travel per dial division (upper/lower tool posts) | 0.05 mm |
| Rapid traverse speed (Longitudinal/Transverse) | 3740/1870 mm/min |
| Compound rest rapid traverse speed | 935 mm/min |
| **Tailstock** | |
| Sleeve diameter | ¢160 mm |
| Sleeve travel | 300 mm |
| Center sleeve taper | MT.6 |
| **Power** | |
| Main motor power | 22 Kw |
| Main motor speed | 1460 rpm |
| **Lubrication System** | |
| Oil cylinder working pressure | 25 Kg/cm |
| Gear pump flow | 10 L/min |
| Gear pump speed | 1450 rpm |
| **Max. Load of the Lathe** | 6 T |
| **Weight & Dimensions** | |
| Height | 2150 mm |
| Width | 2150 mm |
| Length | 4600/5100/6100/7100/8100/9100/11100/13100/15100/17100 mm |
| Net weight | 10900/11400/12900/14400/15900/16600/18000/19400/20800/22200 kg |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 4-Jaw chuck | Standard |
| Lightning device | Standard |
| Coolant device | Standard |
| Support tool box | Standard |
| Operation manual | Standard |
| Qualified instructions | Standard |
| Packing list | Standard |
Logistics & Support
### Packing
Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping. Custom crating available for extra-length configurations.
### Warranty
Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
### Technical Support
Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
### Export Coverage
Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
### Customs Documentation
Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum workpiece length available for the CW61160 lathe?
A: CW61160 heavy duty manual metal lathe offers workpiece lengths from 1500mm up to 17100mm, customizable to your production needs.
Q: How does the CW61160 minimize deflection during heavy cutting?
A: The 755mm wide bed guide rail and 45x45mm tool cross-section of this heavy duty manual lathe reduce shaft whip and deflection during deep cutting tasks.
Q: Which industries benefit most from the CW61160 manual lathe?
A: CW61160 heavy duty manual metal lathe is optimized for maritime, energy, and mining sectors machining large, high-load components.
