Heavy Duty Parallel Lathe CW6163x2000 For Precision Component Turning
Heavy Duty Parallel Lathe CW6163x2000 For Precision Component Turning
Place of Origin:
Anyang, Henan
Brand Name:
Authorized Anyang Product
Certification:
CE Certifications
Model Number:
CW6163x2000
Contact Us
Request A Quote
Product Details
Max. Workpiece Length:
2000mm
Max. Swing Over Bed:
630mm
Guide Span:
550mm
Max. Load:
1000Kg
Spindle Through-hole:
100mm
Main Motor Power:
11Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
19000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Heavy Duty Parallel Lathe CW6163x2000: Ra ≤2.5μm Surface Roughness for Precision Component Machining
Model: CW6163x2000 | Core Keyword: heavy duty parallel lathe
Summary
Heavy Duty Parallel Lathe CW6163x2000 delivers precision turning with surface roughness Ra ≤2.5μm and cylindricity error ≤0.04mm over 300mm length. Its 550mm cast iron bed ensures stable operation.
Equipped with an 11Kw main motor and three-support spindle structure, this lathe handles powerful cutting tasks. The 18-speed range allows optimal rotational speed selection for diverse component machining.
Ideal for aerospace and automotive sectors requiring high-precision parts. This model supports metric, imperial, module, and diametral pitch thread turning, meeting strict quality standards.
Features
- 550mm wide high anti-torsion cast iron bed with induction-hardened guideway surface, paired with PTFE soft belt for wear resistance and vibration absorption

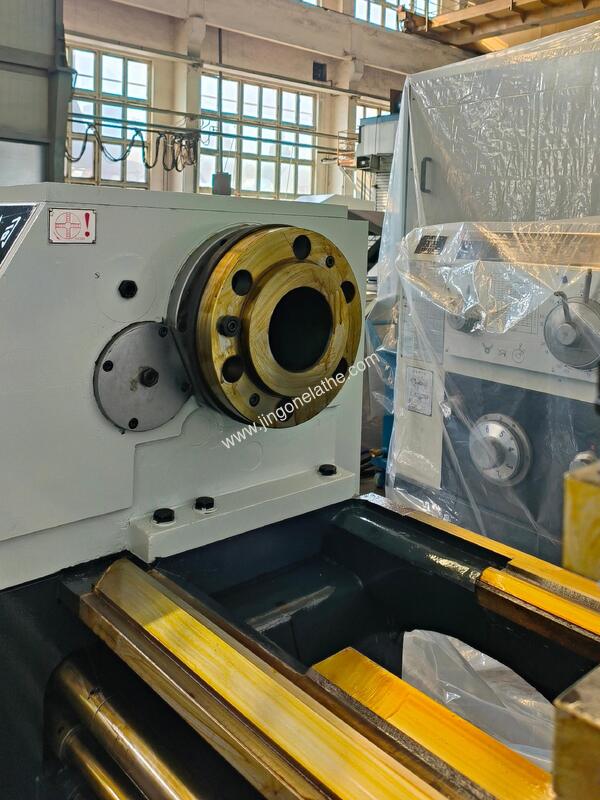

- Three-support spindle structure with Ф100 through-hole, providing high stiffness and precision for powerful cutting operations
- 18-speed wide speed range enables optimal rotational speed selection, supporting metric, imperial, module, and diametral pitch thread turning
- Delivers surface roughness Ra ≤2.5μm and roundness error ≤0.01mm, meeting high-precision component machining requirements
- Includes standard accessories: 3-jaw chuck (¢325), coolant device, dead center (MT.5), and anchor bolts (M24)
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max. swing over bed | mm | 630 |
| Max. swing over carriage | mm | 350 |
| Max. workpiece length | mm | 2000 |
| Max. Turning length | mm | 1850 |
| Width of the bed guide rail | mm | 550 |
| Spindle nose | C11 | |
| Spindle hole font end taper | mm | 1:20 120 |
| Center taper | M.T.5 | |
| Spindle through-hole | mm | ¢100 |
| Spindle speed stages | 18 | |
| Spindle speed range | rpm | 7.5-1000 |
| Feed numbers on longitudinal and transverse | 64; 0.1-24.32 | |
| Ratio: Transverse to longitudinal | mm | 1:2 |
| Screw pitch | mm | 12 |
| Metric threads | mm | 50 types 1-240 |
| Inch threads | T.P.I | 26 types 14-1 |
| Module threads | mm | 53 types 0.5-120 |
| Dia. threads | D.P.I | 24 types 28-1 |
| Rapid traverse speed of carriage | mm/min | 4000 |
| Swivel angle of the compound rest | mm | ±90° |
| Max.allowable tool section | mm | 32 |
| Upper tool post stroke | mm | 200 |
| Lower tool post stroke | mm | 440 |
| Sleeve diameter | mm | ¢100 |
| Sleeve travel | mm | 250 |
| Center sleeve taper | MT.5 | |
| Main motor power | Kw | 11 |
| Main motor speed | rpm | 1460 |
| Rapid motor power | Kw | 1.1 |
| Rapid motor speed | rpm | 1450 |
| Coolant pump motor power | W | 90 |
| Coolant pump flow | L/min | 25 |
| Working pressure of the oil cylinder | Mpa | 0.98-1.47 |
| Gear pump flow | L/min | 6 |
| Gear pump speed | rpm | 1450 |
Accessory Configurations
| Accessories | Parameter |
|---|---|
| 3-Jaw chuck | ¢325 |
| Lightning device | 24V 40W |
| Coolant device | |
| Center sleeve | ¢120/MT.5 |
| Dead Center | MT.5 |
| Anchor bolts | M24 |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining and steel band reinforcement, designed for long-distance shipping of Heavy Duty Parallel Lathe CW6163x2000
Warranty: 12-month warranty covers core mechanical systems including spindle, gearbox, and bed guideways of CW6163x2000
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits for CW6163x2000)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading for CW6163x2000
FAQ
Q: What surface roughness can the CW6163x2000 achieve for precision parts?
A: The Heavy Duty Parallel Lathe CW6163x2000 delivers surface roughness Ra ≤2.5μm, meeting strict precision requirements for aerospace and automotive components.
Q: What is the spindle through-hole diameter of this lathe?
A: The CW6163x2000 Heavy Duty Parallel Lathe features a Ф100 spindle through-hole, enabling easy passage of long workpieces and bar stock.
Q: Can this lathe handle both metric and imperial thread machining?
A: Yes, the CW6163x2000 Heavy Duty Parallel Lathe can directly turn metric, imperial, module, and diametral pitch threads, supporting diverse production needs.
