Heavy Duty Engine Lathe CW6163x5000 for 5 Meters Long Workpiece Turning
Heavy Duty Engine Lathe CW6163x5000 for 5 Meters Long Workpiece Turning
Place of Origin:
Anyang, Henan
Brand Name:
Authorized Anyang Product
Certification:
CE Certifications
Model Number:
CW6163x5000
Contact Us
Request A Quote
Product Details
Max. Workpiece Length:
5000mm
Max. Swing Over Bed:
630mm
Guide Span:
550mm
Spindle Nose:
C11
Spindle Through-hole:
100mm
Spindle Speed Range:
7.5-1000rpm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
26000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Heavy Duty Engine Lathe CW6163x5000: High Stiffness Bed for 5000mm Long Workpiece Turning
Model: CW6163x5000 | Core Keyword: heavy duty engine lathe
Summary
Heavy Duty Engine Lathe CW6163x5000 is engineered for long workpiece machining, supporting maximum workpiece length of 5000mm. Its high anti-torsion cast iron bed ensures stable operation during heavy cutting.
With 4000mm/min rapid traverse speed and 18-speed range, this lathe optimizes production efficiency. The induction-hardened guideways with PTFE soft belt deliver wear resistance and long-term accuracy.
Suitable for industries like shipbuilding and heavy machinery. This model processes metric, imperial, module, and diametral pitch threads, with cylindricity error ≤0.04mm over 300mm length.
Features

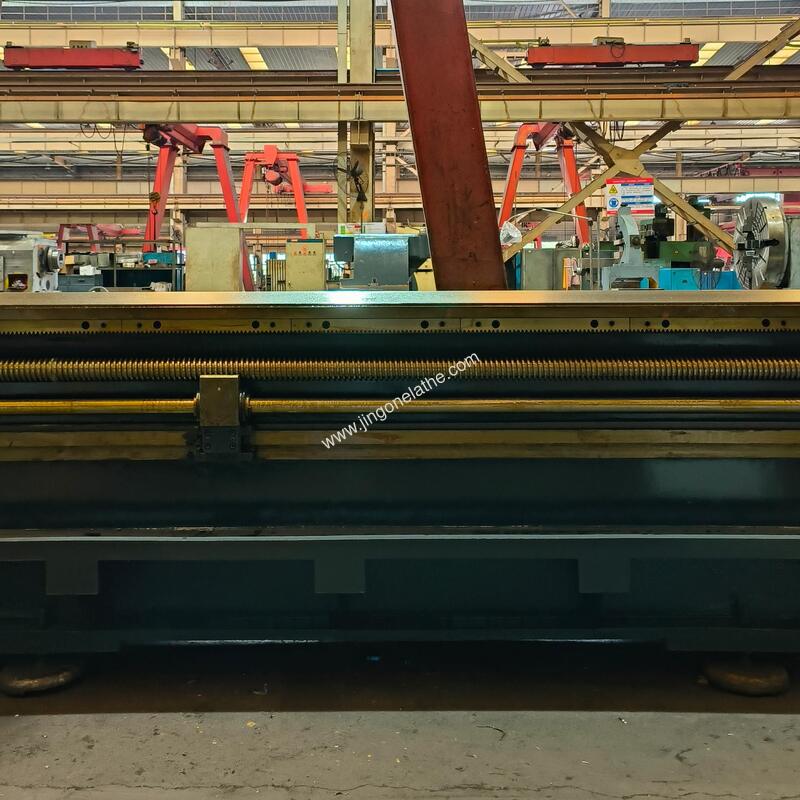

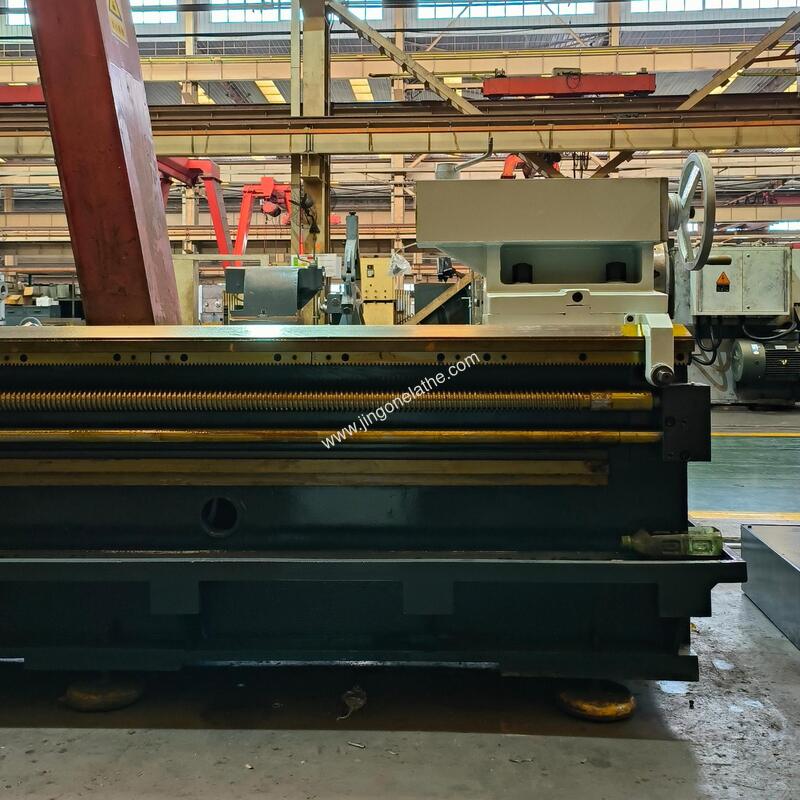

- High anti-torsion cast iron bed with 550mm width, induction-hardened guideway surface paired with PTFE soft belt for wear resistance and vibration absorption
- 4000mm/min rapid traverse mechanism reduces non-cutting time, boosting overall production efficiency for long workpiece operations
- Three-support spindle structure with Ф100 through-hole, enabling powerful cutting and high stiffness for heavy-duty applications
- 18-speed wide speed range allows optimal rotational speed selection, supporting diverse thread turning and cylindrical machining tasks
- Comes with standard accessories including 3-jaw chuck (Ф325), coolant device, dead center (MT.5), and anchor bolts (M24)
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max. swing over bed | mm | 630 |
| Max. swing over carriage | mm | 350 |
| Max. workpiece length | mm | 5000 |
| Max. Turning length | mm | 4850 |
| Max.swing over gap | mm | 830 |
| Effective gap width | mm | 300 |
| Width of the bed guide rail | mm | 550 |
| Spindle nose | C11 | |
| Spindle hole font end taper | mm | 1:20 120 |
| Center taper | M.T.5 | |
| Spindle through-hole | mm | ¢100 |
| Spindle speed stages | 18 | |
| Spindle speed range | rpm | 7.5-1000 |
| Feed numbers on longitudinal and transverse | mm/min | 64; 0.1-24.32 |
| Ratio: Transverse to longitudinal | mm | 1:2 |
| Screw pitch | mm | 12 |
| Metric threads | mm | 50 types 1-240 |
| Inch threads | T.P.I | 26 types 14-1 |
| Module threads | mm | 53 types 0.5-120 |
| Dia. threads | D.P.I | 24 types 28-1 |
| Rapid traverse speed of carriage | mm/min | 4000 |
| Swivel angle of the compound rest | mm | ±90° |
| Max.allowable tool section | mm | 32 |
| Upper tool post stroke | mm | 200 |
| Lower tool post stroke | mm | 440 |
| Sleeve diameter | mm | ¢100 |
| Sleeve travel | mm | 250 |
| Center sleeve taper | MT.5 | |
| Main motor power | Kw | 11 |
| Main motor speed | rpm | 1460 |
| Rapid motor power | Kw | 1.1 |
| Rapid motor speed | rpm | 1450 |
| Coolant pump motor power | W | 90 |
| Coolant pump flow | L/min | 25 |
| Working pressure of the oil cylinder | Mpa | 0.98-1.47 |
| Gear pump flow | L/min | 6 |
| Gear pump speed | rpm | 1450 |
Accessory Configurations
| Accessories | Parameter |
|---|---|
| 3-Jaw chuck | ¢325 |
| Lightning device | 24V 40W |
| Coolant device | |
| Center sleeve | ¢120/MT.5 |
| Dead Center | MT.5 |
| Anchor bolts | M24 |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining and steel band reinforcement, designed for long-distance shipping of Heavy Duty Engine Lathe CW6163x5000
Warranty: 12-month warranty covers core mechanical systems including spindle, gearbox, and bed guideways of CW6163x5000
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits for CW6163x5000)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading for CW6163x5000
FAQ
Q: What is the rapid traverse speed of the CW6163x5000 carriage?
A: The Heavy Duty Engine Lathe CW6163x5000 features a carriage rapid traverse speed of 4000mm/min, reducing non-cutting time for long workpiece operations.
Q: What motor power does this lathe use for heavy cutting tasks?
A: The CW6163x5000 Heavy Duty Engine Lathe is equipped with an 11Kw main motor, providing sufficient power for powerful cutting operations.
Q: Does this lathe include standard accessories for immediate operation?
A: Yes, the CW6163x5000 Heavy Duty Engine Lathe comes with 3-jaw chuck (¢325), coolant device, dead center (MT.5), and other essential accessories.
