High Speed Gang Tool CNC Lathe TCK6340 | 3500rpm Spindle, ±0.003mm Repeatability
High Speed Gang Tool CNC Lathe TCK6340 | 3500rpm Spindle, ±0.003mm Repeatability
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK6340
Contact Us
Request A Quote
Product Details
Max. Swing Diameter Over Bed:
400mm
Max. Turning Length:
Gang Tools 185mm； Chuck To Live Tools 135mm
Spindle Taper:
MT.6
Chuck Type:
Hydraulic Hollow
Guide Rail Type:
Linear Guide Rail
Spindle Motor Power:
5.5Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 10000 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

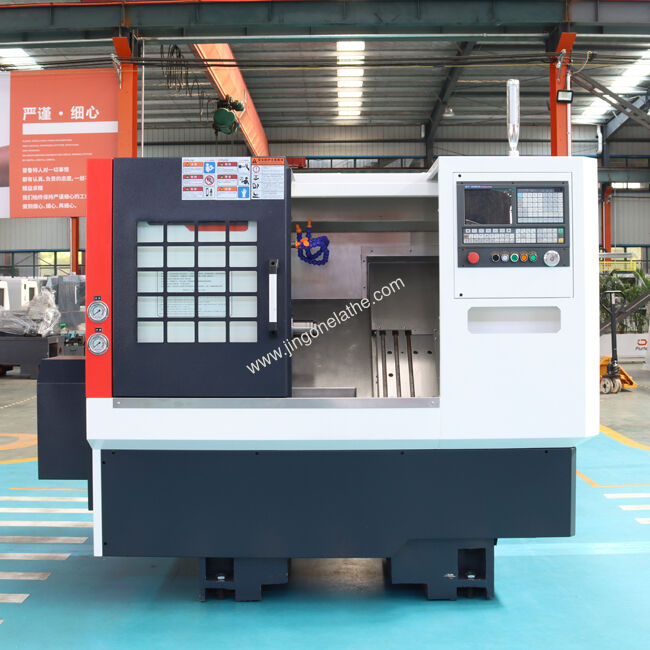

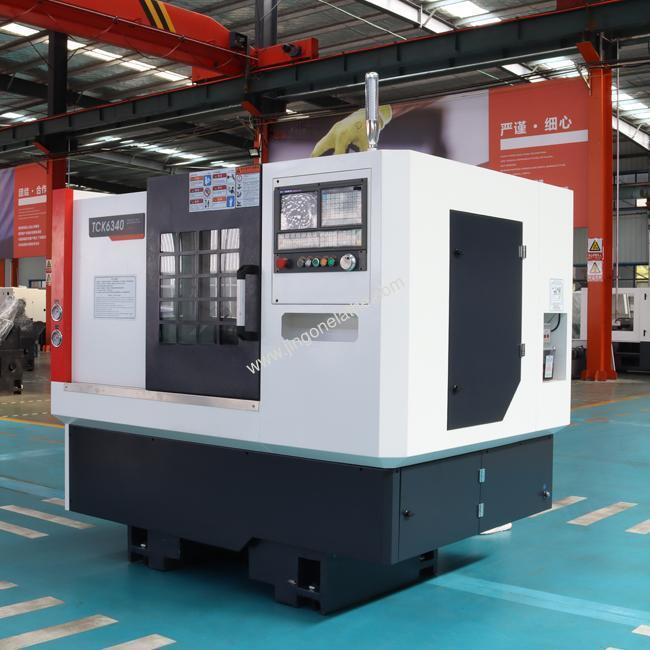

High Speed Gang Tool CNC Lathe TCK6340: ±0.003mm Repeatability for Consistent Precision Machining
Model: TCK6340 | Core Keyword: High Speed Gang Tool CNC Lathe
Summary
High Speed Gang Tool CNC Lathe TCK6340 is a compact, high-precision turning solution engineered for efficient production of small to medium-sized parts. Its ±0.003mm positioning repeatability and Ra1.6μm surface roughness meet strict tolerance requirements for automotive, aerospace, and medical component manufacturing.
Equipped with a 5.5Kw spindle motor and 3500rpm maximum speed, this TCK6340 gang tool lathe handles bar stock up to 45mm diameter and disc parts up to 390mm diameter, with rapid feed rates of 24m/min on X/Z axes to reduce cycle times and boost throughput.
Built with a high-strength cast iron bed and PMI linear guide rails, the TCK6340 is designed for long-term stability and minimal downtime, making it ideal for contract manufacturers and precision machining shops seeking reliable, high-volume production equipment.
Features
- High-strength cast iron bed with aging treatment to minimize thermal deformation and retain precision over extended use
- 400mm swing over bed, 390mm max disc part diameter, and 45mm bar capacity to accommodate diverse workpiece sizes
- PMI MSR30S2SSF1 linear guide rails for smooth, high-speed axis movement and reduced wear

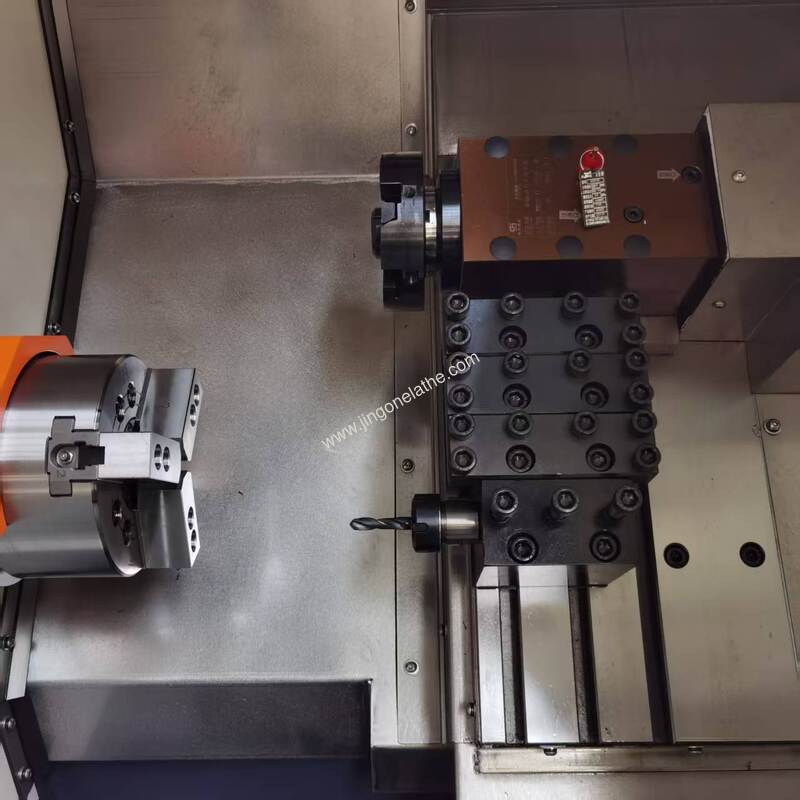

- 5.5Kw spindle motor with 3500rpm maximum speed and 6’’ hydraulic hollow chuck for secure, efficient workpiece clamping
- Flexible configuration options including Fanuc/Siemens/GSK/Syntec CNC systems, chip conveyors, and robot interfaces for automated production
- Complies with ISO9001/ISO14001/CE standards, with 3000+ successful installations across 50+ countries
- Compact 2200x1530x1780mm dimensions for easy integration into existing workshop layouts
Technical Specifications
| Parameter | Unit | TCK 6340 |
|---|---|---|
| **Capacity** | ||
| Max. swing diameter over bed | mm | φ400 |
| Max. swing diameter over cross-slide | mm | φ140 |
| Max. diameter for machining disc parts | mm | φ390 |
| Max. Turning length | mm | Gang tools 185 Chuck to live tools 135 |
| **Spindle** | ||
| Spindle nose type | A2-5 | |
| Spindle through-hole diameter | mm | φ56 |
| Bar capacity | mm | φ45 |
| Spindle taper | MT.6 | |
| Spindle speed | rpm | 3500 |
| **Chuck** | ||
| Chuck type | Hydraulic hollow | |
| Chuck size | inch | 6’’ |
| **Travel & Feed** | ||
| X-axis travel | mm | 400 |
| Z-axis travel | mm | 300 |
| Rapid feed (X/Z) | m/min | 24/24 |
| Min. Setting unit | mm | 0.001 |
| **Guideways & Transmission** | ||
| Guide rail type | Linear guide rail | |
| Guide rail model | mm | X: MSR30S2SSF1+R760 Z: MSR30S2SSF1+R760 |
| Screw model | mm | X: 3210-630-840 Z: 3210-445-703 |
| **Servo system** | ||
| X-axis motor torque | Nm | 6 |
| Z-axis motor torque | Nm | 6 |
| Spindle motor power | Kw | 5.5 |
| **Accuracy** | ||
| Periodic axial movement of the spindle | mm | 0.005 |
| Radial runout of the positioning cone surface of the spindle chuck | mm | 0.005 |
| Repeatability of positioning | mm | X:±0.003 Z:±0.003 |
| Diameter consistency | mm | 0.01/150 |
| Flatness | mm | 0.02/φ200 |
| Accumulated pitch error of threads | mm | 0.010/50 |
| Surface roughness | μm | Ra1.6 |
| **Others** | ||
| Dimensions | mm | 2200x1530x1780 |
| Weight | Kg | 2200 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine bed | Included (high-strength cast iron with aging treatment) |
| Control system | Included (optional Fanuc/Siemens/GSK/Syntec CNC systems) |
| Spindle motor | Included (5.5Kw) |
| Spindle | Included (A2-5 nose, MT.6 taper, 3500rpm) |
| Linear guide rail | Included (PMI MSR30S2SSF1+R760) |
| Ball screw | Included (NMC 3210 model) |
| Screw bearing | Included |
| Automatic lubrication | Included |
| Coolant pump | Included |
| Hydraulic station | Included |
| Hydraulic chuck | Included (6’’ hollow type) |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands to protect the 2200kg TCK6340 lathe during long-distance shipping.
Warranty: Full 12 months warranty covering core mechanical systems (spindle, linear guide rails, bed structure).
Lead Time & Pricing: 60-day production lead time; 30-day price validity on all quotes.
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits). Local language manuals and training videos are provided for easy operation.
Spare Parts: Dealer-priced spare parts available globally to minimize downtime.
Export Coverage: Exported to 50+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets, with 3000+ successful installations.
Customs Documentation: Complete export documentation provided, including CE, ISO9001, ISO14001 certificates, commercial invoice, packing list, and bill of lading.
FAQ
Q: What workpiece sizes can the TCK6340 high speed gang tool CNC lathe handle?
A: The TCK6340 high speed gang tool CNC lathe accommodates up to 400mm swing over bed, 390mm disc parts, and 45mm bar stock for diverse machining applications.
Q: How does the TCK6340 maintain long-term precision stability?
A: The TCK6340 high speed gang tool CNC lathe uses an aged cast iron bed and PMI linear guide rails to retain ±0.003mm positioning repeatability over extended production runs.
Q: Can the TCK6340 be integrated into automated high-volume production lines?
A: Yes, the TCK6340 high speed gang tool CNC lathe supports optional chip conveyors, robot interfaces, and bar feeders to integrate with automated production systems.
Tags：
