Product Details
Worktable Size:
320x1325mm
Max Load Capacity:
500kg
Spindle Speed Range:
30-1500 R/min
Worktable Rotary Angle:
±45°
Main Motor Power:
7.5kW
Spindle Taper:
ISO 50 7:24
Standard Configuration:
ISO 50 Collet Chuck Set, Milling Arbor
Optional Upgrade:
3-axis DRO, Universal Milling Head
Payment & Shipping Terms
Minimum Order Quantity
1
Price
12000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
4H Vertical Turret Milling Machine with 850mm X-Axis Travel and R8 Spindle Taper for Precision Metal Component Machining
Get Best Price
X5040 Knee Type Milling Machine with 800kg Max Load, ISO 50 Spindle, and 1600mm Worktable for Heavy-Duty Metal Machining
Get Best Price
Contact Us
Product Description
The X6132(v) Heavy Duty Universal Mill Delivers Horizontal and Vertical Milling Function for Industrial Cmplex Workpieces
Model: X6132(v) | Core Keyword: heavy duty universal mill

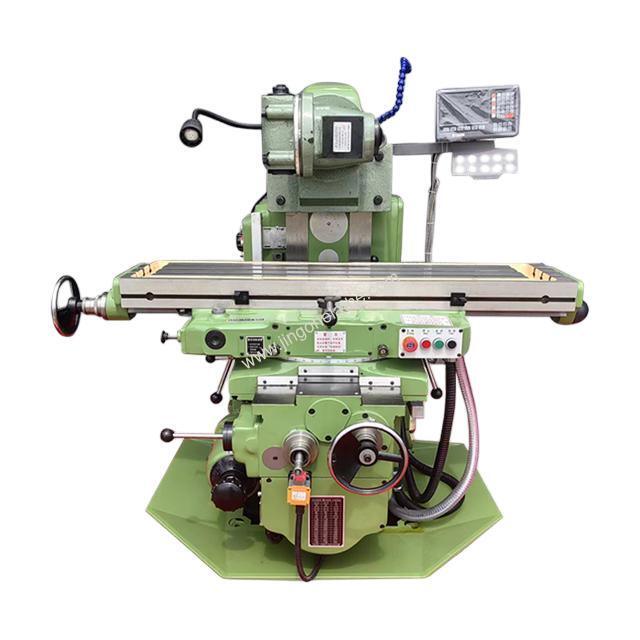

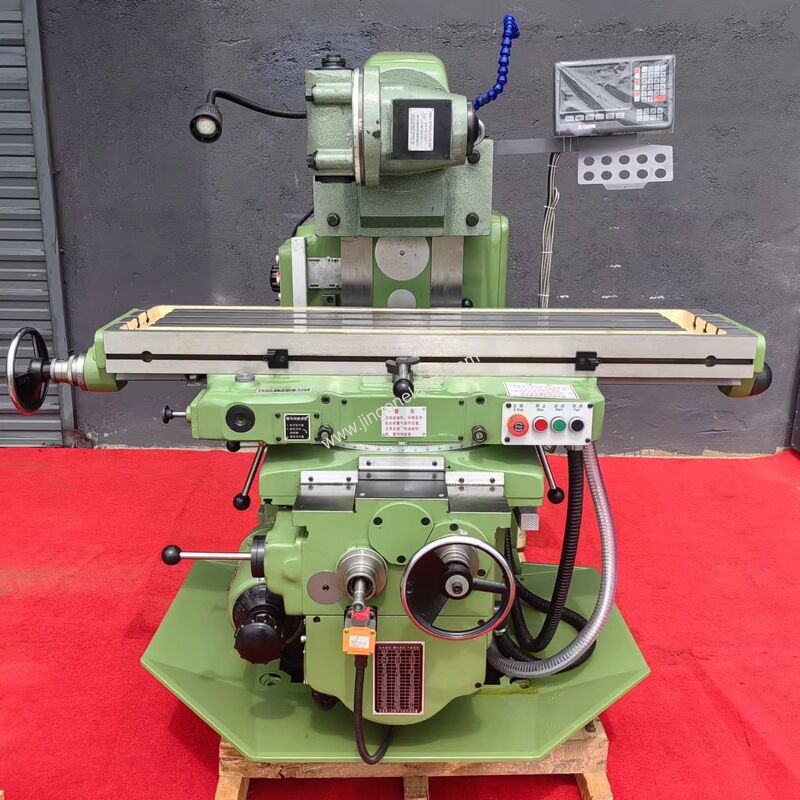

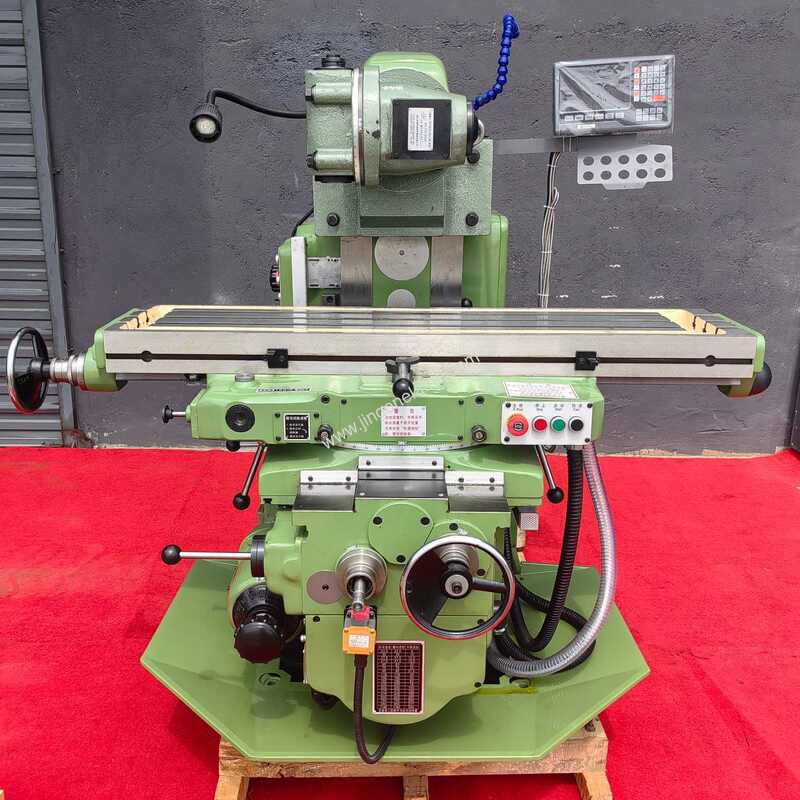

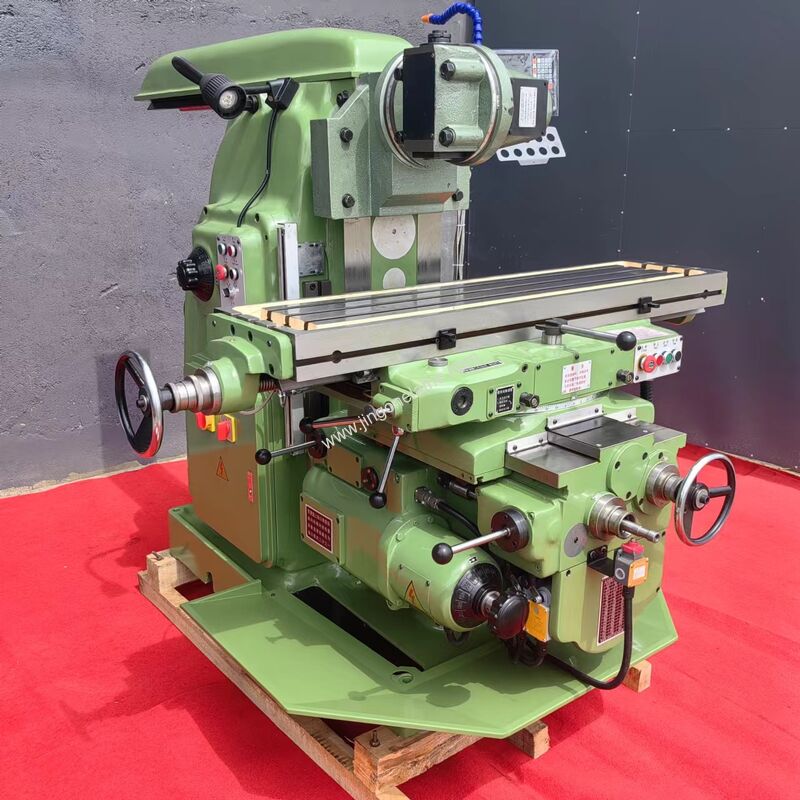

X6132(v) Heavy duty universal mill Overview
The X6132(v) is a high-performance milling machine designed for industrial precision. As a robust heavy duty universal mill, it features a 320x1325mm worktable, 7.5kW main motor, ±45° swivel worktable. It configured with a universal milling head as an option, which can achieve a vertical milling function for complex part processing.
Built for heavy-duty production environments, this universal milling center handles planes, grooves, gears, and inclined surfaces with ease. Its expandable machining scope supports general manufacturing applications, delivering heavy cutting capacity even in large cutting range.
Technical Insight
- Rigid High-Strength Cast Construction: Major components (base, column, worktable) use high-strength cast material with aging treatment, ensuring long-term stability for heavy cutting.
- ±45° Swivel Two-Layer Worktable: 320x1325mm upper table enables longitudinal travel, while the lower table swivels ±45° to expand inclined surface machining capabilities.
- Three-Bearing Spindle System: ISO 50 7:24 taper spindle with tapered roller bearings provides high rigidity and 30-1500 rpm speed range for versatile milling operations.
- Triple Feed Modes (X/Y/Z Axes): Manual, power feed, and 2300mm/min rapid traverse reduce non-machining time and adapt to diverse processing needs.
- Super-Audio Quenched Guideways: X/Y/Z guideway pairs undergo precision grinding and forced lubrication, maintaining high accuracy and extending service life.
- Energy Consumption Spindle Braking: Delivers large torque for quick, reliable spindle stops, improving operational safety and efficiency.
- Expandable Machining Scope: Compatible with universal milling heads, rotary tables, and dividing heads to handle complex multi-axis machining tasks.
Specifications
| Technical Specifications of X6132(v) | Unit | Parameter |
|---|---|---|
| Worktable size | mm | 320x1325 |
| Max.longitudinal travel (Manual/Power) | mm | 700/680 |
|
Max.transverse travel (Manual/Power) |
mm | 255/240 |
| Max.vertical travel (Manual/Power) | mm | 320/300 |
| Worktable rotary angle | ±45° | |
| T-slots | mm | 3-18-70 |
| Max. load | kg | 500 |
| Spindle taper | ISO 50 7:24 | |
| Spindle bore diameter | mm | 29 |
| Front bearing diameter | mm | 90 |
| Tool shank diameter | mm | 32 |
| Spindle center to worktable | mm | 30-350 |
| Vertical bed guide rail to worktable center | mm | 215-470 |
| Spindle center line to overhanging beam | mm | 155 |
| Spindle speed steps | 18 | |
| Spindle speed range | rpm | 30-1500 |
| Worktable feed steps | 18 | |
| Worktable longitudinal feed | mm/min | 23.5-1180 |
| Worktable transverse feed | mm/min | 23.5-1180 |
| Worktable vertical feed | mm/min | 8-394 |
| Worktable rapid feed (Longitudinal& transverse) | mm/min | 2300 |
| Worktable rapid feed (Vertical) | mm/min | 770 |
| Main motor power | kW | 7.5 |
| Main motor speed | rpm | 1440 |
| Feed motor power | kW | 1.5 |
| Coolant pump motor power | W | 125 |
| Dimensions | mm | 2294x1770x1665 |
| Weight | kg | 2650 |

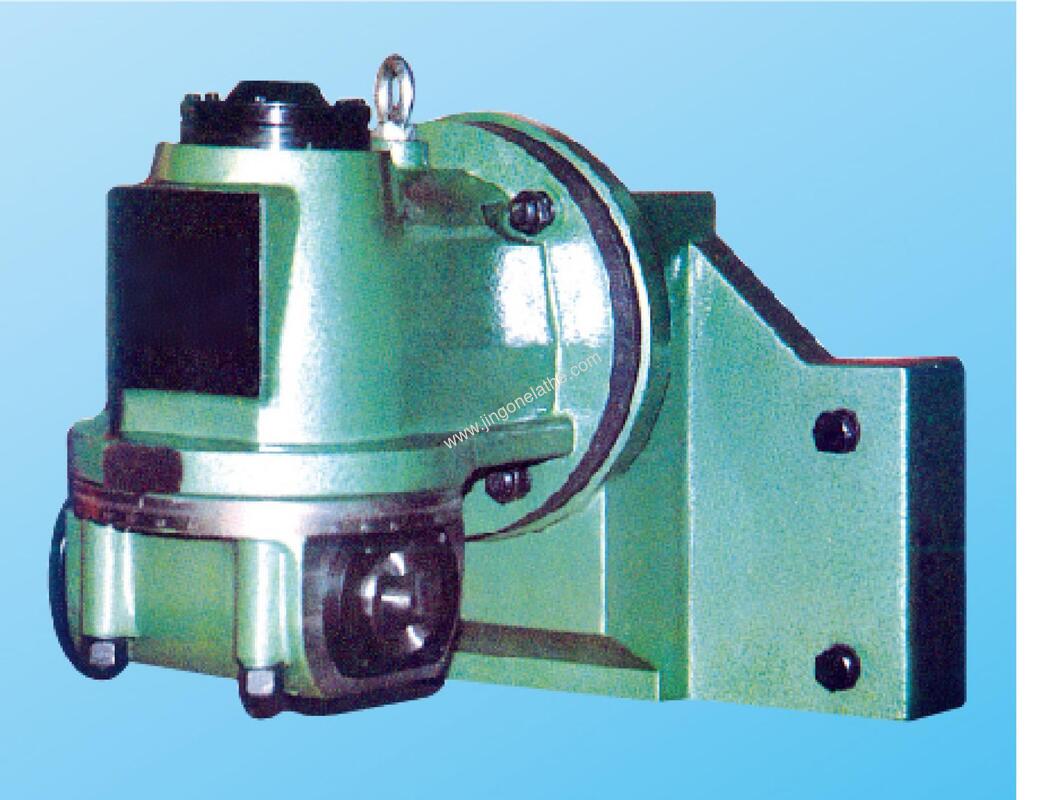

Universal Milling Head Specifications
| Universal Milling Head | Parameter |
|---|---|
| Taper of universal milling head | M.T.4 |
| Rotating angles | 360° |
| Ratio with milling machine | 1:1 |
| Taper with spindle of milling machine | 7:24 |
| Gross weight | 147 kg |
Standard Configurations
| Standard Configurations | Parameter |
|---|---|
| Elevating handwheel | |
| Horizontal milling arbor | ¢32/50 |
| Drawbar (for horizontal milling) | |
| ISO50 shell end mill holder | ¢40 |
| Piston grease gun | |
| Supporting tools (wrench, etc.) | |
| ISO50 Collet Chuck Set | 4,5,6,8,10,12,14,16 |
| 7:24 Reduction Sleeve | 7:24 ISO50/MS4 |
Optional Accessories
| Optional Accessories | |
|---|---|
| 3-axis DRO | |
| Universal dividing head | Optional center height: 80, 100, 125, 160, 200, 250 |
| Rotary worktable |
Optional: ¢160, ¢200, ¢250, ¢320 |
| Indexable carbide face mill |
Optional: ¢63, ¢100, ¢125, ¢160 |
| Machine leveling mounts | 240x120 |
| Spare parts | Hanger bushing, nuts, pin, slider, key, positioning plate, carbon brush, adjusting ring, etc. |
| Machine vise | Clamping capacity: 200mm |
| Maganetic worktable |
FAQ
Q: What makes the X6132(v) heavy duty universal mill suitable for complex machining?
A: The X6132(v) heavy duty universal mill excels at complex machining. Its ±45° swivel worktable and compatibility with universal milling heads enable multi-angle and multi-axis operations. The 18-speed spindle and triple feed modes adapt to diverse cutting requirements, reducing setup time and boosting production efficiency for automotive, aerospace, and mold manufacturing applications.
Q: How does the X6132(v) maintain accuracy during heavy-duty operation?
A: The X6132(v) heavy duty universal mill maintains accuracy during heavy operation via robust design. High-strength cast components undergo aging treatment to eliminate internal stress, while super-audio quenched guideways with forced lubrication minimize wear. Its three-bearing spindle system delivers high rigidity, ensuring consistent performance even under 500kg workpiece loads and continuous heavy cutting.
Q: Can the X6132(v) heavy duty universal mill be customized for specific production needs?
A: Yes, the X6132(v) heavy duty universal mill offers extensive customization options. You can add a 3-axis DRO, universal milling head, rotary table, or dividing head to expand machining capabilities. Optional carbide face mills and machine vises adapt to specific workpiece sizes and materials. As a factory-direct supplier, JingOne also provides tailored configuration support to match your production requirements.
