Q: Why do I need to choose a CNC Vertical Lathe (VTL) to process large brake discs and precision flanges rather than a horizontal CNC lathe?

A: When clamping heavy, large-diameter disc parts like brake rotors or industrial pipeline flanges on a horizontal lathe, the workpiece creates a severe cantilevered overhang. This overhang exerts uneven radial leverage on the spindle bearings, which often leads to micro-deflection, geometric lobing, and taper errors. Selecting a vertical setup like the VTC600 CNC vertical lathe ensures the workpiece weight sits directly downwards, parallel to the gravity vector. This completely eliminates centrifugal part sag, simplifies part loading, and allows your shop to achieve strict flatness and parallelism tolerances across wide faces.

Q: How do I choose between the standard 12-station servo turret and the optional BMT45 live-tool power turret in the vertical turning center?

A: Your selection depends on your workflow integration goals and component complexity:

• Choose the Standard Servo Turret (Vertical/Horizontal): If your parts only require pure turning, profiling, boring, and facing operations (such as standard automotive brake discs). This maximizes your indexing speeds and tool layout flexibility.

• Choose the BMT45/BMT55 Live-Tool Power Turret: If your components feature bolt-hole circles, radial slots, or peripheral keyways (such as precision motor parts or valve flanges). Upgrading to this vertical turning center layout allows you to perform complete turn-mill actions in a single setup, eliminating the need to move parts to a secondary machining center and eradicating part repositioning errors.

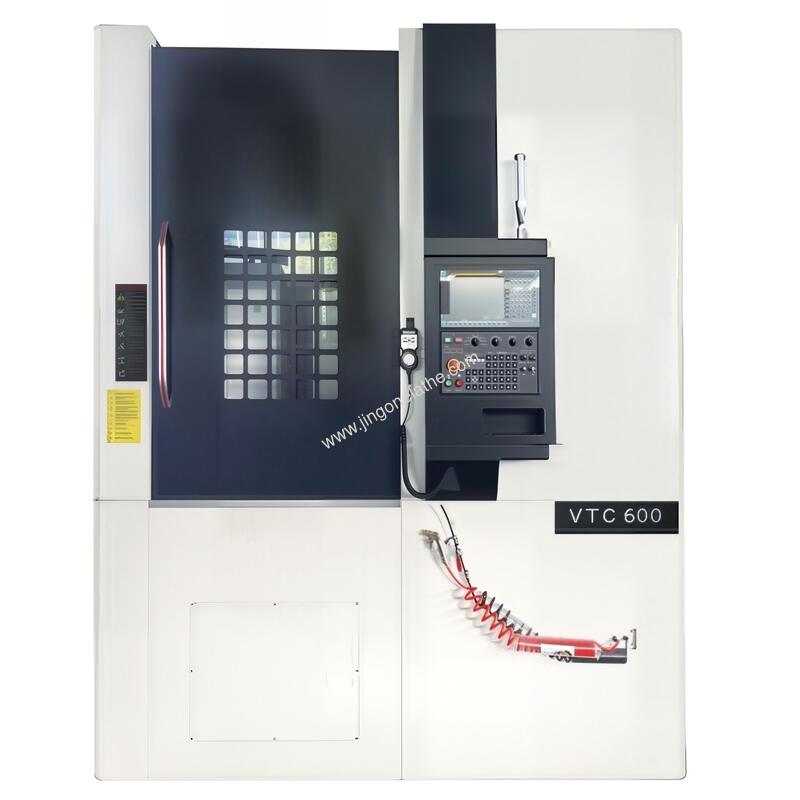

Q: Can the VTC600 CNC Vertical turning center handle high-speed, heavy duty machining cycles on tough materials?

A: Yes. We know that: Heavy-duty, high-speed cutting creates a harsh machining environment characterized by severe shock loads and rapid thermal buildup—especially when roughing scale-crusted castings or tough alloys. Standard lathes often stall or suffer from severe tool chatter under these deep depths of cut.

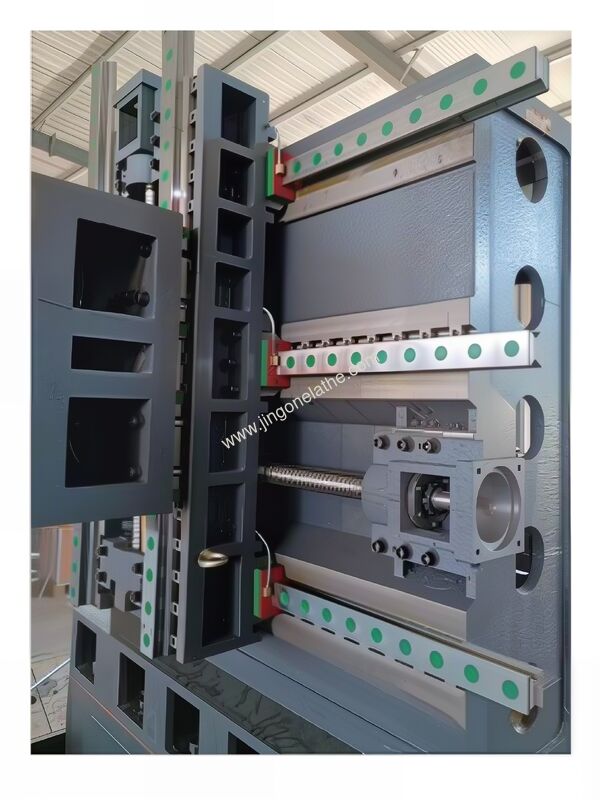

Choosing VTC600 that pairs a 950 Nm high-torque rating with a massive 200 mm front spindle bearing diameter ensures the system maintains low-end mechanical power and constant surface speed (CSS) without stalling, while the oversized precision NSK bearings distribute radial and axial impact forces evenly. To translate this aggressive metal removal into tight geometric tolerances without structural twisting or deflection, these forces are guided by ultra-wide, hardened linear rails (45 mm X-axis / 55 mm Z-axis) and heavy-duty THK ball screws. This heavy-duty structural synchrony allows you to execute aggressive roughing while still securing a reliable repeat positioning accuracy.
