CNC Vertical Lathe VTC600 | Cylindrical Part Machining
CNC Vertical Lathe VTC600 | Cylindrical Part Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
VTC600
Contact Us
Request A Quote
Product Details
CNC System:
Fanuc Oi-TF
Bearing:
NSK Bearings
Electrical Components:
Schneider Electrical Components
Ball Screw:
THK Ball Screw
Linear Guide:
HIWIN Guide Rail
Turret:
TCSM Hydraulic Servo Power Turret
Max. Turning Diameter:
800 Mm
Max. Turning Height:
700 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
30000 USD (enquiry us)
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
CNC Vertical Lathe VTC600: High-Torque, Long-Term Precision for Heavy-Duty Machining
Model: VTC600 | Core Keyword: CNC Vertical Lathe
Summary
CNC Vertical Lathe VTC600 is designed for high-precision machining of internal/external cylindrical surfaces, conical surfaces and end faces. Its moving column structure ensures stable operation during heavy-duty cuts, with 950Nm spindle torque to handle tough materials efficiently.
Equipped with a 12-station servo turret and 15’’ hydraulic chuck, this model features ±0.004mm repeat positioning accuracy and hardened linear guides to minimize wear over long production runs. It supports both vertical and horizontal turret configurations to match specific machining needs.
This VTC600 CNC Vertical Lathe is ideal for automotive, aerospace and heavy machinery manufacturers requiring consistent, high-quality results for medium to large workpieces up to 900mm swing diameter.
Features

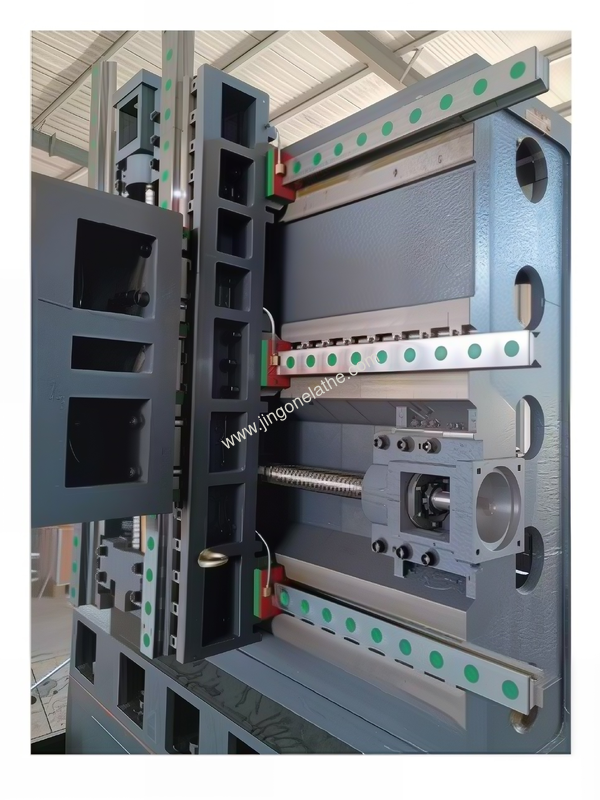

- Moving column structure ensures stable machining performance even during high-torque operations
- 12-station servo turret reduces non-cutting downtime with fast indexing speed
- 15’’ hydraulic chuck provides secure workpiece clamping for heavy-duty cutting tasks
- HIWIN Taiwan linear guides minimize wear and maintain long-term positioning accuracy
- 950Nm spindle torque handles high-strength materials with minimal chatter
- Freely selectable vertical/horizontal turret configurations to match machining requirements
- ±0.004mm repeat positioning accuracy guarantees consistent part quality across production runs
- 750W coolant system supports continuous, high-speed machining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| X-axis travel | 600 mm |
| Z-axis travel | 700 mm |
| Max. Swing Diameter | 900 mm |
| Max. Turning Diameter | 800 mm |
| Max. Turning height | 700 mm |
| Spindle Speed | 50-800 rpm |
| Spindle Front Bearings | ¢200 |
| Spindle axial runout | 0.005 mm |
| Spindle radial runout | 0.005 mm |
| Spindle output Torque | 950 Nm |
| Chuck | 15’’ Hydraulic Chuck |
| Turret | 12 station servo Turret |
| Ball Screw Diameter | X: ¢40 Z: ¢50 mm |
| Linear guide width | X: ¢45 Z: ¢55 mm |
| Coolant System | 750 W |
| Repeat Positioning | ±0.004 mm |
| Positioning | ±0.008 mm |
| Least Input Increment | 0.001 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Main Machine | VTC 600 |
| CNC System | Fanuc Oi TF |
| Servo Drive | Fanuc |
| X/Z Servo Motor | Fanuc |
| Servo Transformer | Fanuc |
| Spindle Drive | Fanuc |
| Spindle Servo Motor | Fanuc |
| Spindle Unit | Customized |
| Spindle Bearing | NSK, Japan |
| Electrical Components | Schneider |
| Hydraulic Servo Power Turret | TCSM, Taiwan |
| Cooling Water Pump | Zhejiang |
| Lubricating Oil Pump | HERG |
| Hydraulic Rotary Cylinder | KoopChina |
| Hydraulic Station | Shandong |
| Hydraulic Chuck | KoopChina |
| Ball Screw | THK, Japan |
| Linear Guide | HIWIN, Taiwan |
| Ball Screw Bearing | NSK,Japan/ FAG, Germany |
| Coupling | NBK, Japan |
| Working Lamp | Shandong |
| Protective Cover | Full Protective |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What factors should I prioritize when selecting the VTC600 CNC Vertical Lathe for my production line?
A: When selecting the VTC600 CNC Vertical Lathe, prioritize spindle torque (950Nm) and turret configuration to match your workpiece size and machining requirements.
Q: How do I maintain the long-term positioning accuracy of the VTC600 CNC Vertical Lathe?
A: To preserve the VTC600 CNC Vertical Lathe’s ±0.004mm repeat positioning accuracy, perform quarterly lubrication of linear guides and spindle bearings.
Q: Can the VTC600 CNC Vertical Lathe handle both small-batch and high-volume production tasks?
A: Yes, the VTC600 CNC Vertical Lathe’s fast servo turret indexing and stable moving column structure support both small-batch prototyping and high-volume precision part production.
