Universal Milling Machine X6140 | Heavy-duty Industrial Machining
Universal Milling Machine X6140 | Heavy-duty Industrial Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
X6140
Contact Us
Request A Quote
Product Details
Worktable Size:
400x1700mm
Max.longitudinal Travel (Manual/Power):
900/880mm
Max.transverse Travel (Manual/Power):
315/300mm
Max.vertical Travel (Manual/Power):
380/360mm
T-slots:
3-18-90mm
Max. Load:
800Kg
Spindle Taper:
ISO50 7:24
Tool Shank Diameter:
32/50mm
Spindle Speed Range:
30-1500rpm (18 Stages)
Main Motor Power:
11Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 16000 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Universal Milling Machine X6140 | Heavy-duty Industrial Machining
X6140 Universal Milling Machine | 11Kw Main Motor for 800Kg Max Worktable Load
Product Overview
This Universal Milling Machine X6140 delivers reliable multi-angle cutting and complex geometry milling for heavy industrial components. Equipped with an 11Kw main motor, it supports a maximum worktable load of 800Kg, making it ideal for large-scale part production.
Its swivel head enables all-angle machining, while the 18-speed spindle range (30-1500 RPM) adapts to diverse material cutting requirements. With 900mm manual longitudinal travel and 2300mm/min rapid feed, it balances precision and production efficiency for global manufacturing clients.
Core Features
- Swivel head design enables all-angle cutting and complex geometry milling, matching the ±45° worktable rotary angle for flexible part positioning
- 11Kw high-power main motor supports a maximum 800Kg worktable load, suitable for heavy industrial component machining
- 18 spindle speed steps (30-1500 RPM) and 18 feed steps accommodate diverse material cutting requirements
- 900mm manual/880mm power longitudinal travel, 315mm manual/300mm power transverse travel, and 380mm manual/360mm power vertical travel provide extensive machining range
- ISO 50 7:24 spindle taper ensures stable tool clamping for consistent precision during multi-angle operations
Technical Specifications
| Parameter | Details |
|---|---|
| Worktable size | 400x1700mm |
| Worktable rotary angle | ±45° |

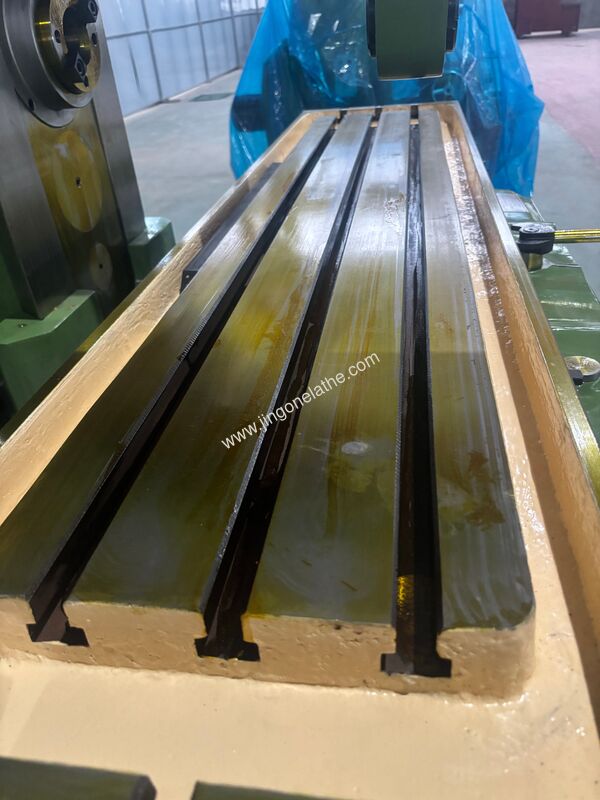

| T-slots | 3-18-70mm |
| Max. load | 800kg |
| Spindle taper | ISO 50 7:24 |
| Spindle bore diameter | 29mm |
| Spindle center to worktable | 30-350mm |
| Main motor power | 11kw |
| Spindle speed steps | 18 |
| Main motor speed | 1460rpm |
Accessory Configurations
Standard Accessories
| Item | Specification |
|---|---|
| Drawbar (for horizontal milling) | 1 |
| Piston grease gun | 1 |
| Supporting tools (wrench, etc.) | 1 |
Optional Accessories
| 3-axis DRO |
Specification: Brand: SINO
Digital readout system for precise position measurement
|
| Universal milling head |
Specification: Taper: MT4
Rotary angles: 360°
|
| Universal dividing head |
Specification: Optional center height:
80, 100, 125, 160, 200, 250
|
International Shipping & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
Frequently Asked Questions
Q: What criteria should I use to select a universal milling machine for heavy components?
A: Prioritize the X6140 universal milling machine with 800Kg max load and 11Kw motor for heavy industrial component machining.
Q: How much does routine maintenance cost for a swivel head milling machine?
A: Routine maintenance for this swivel head milling machine is low, with only standard lubrication and part inspections required annually
Q: How does the X6140 universal milling machine improve machining efficiency for complex parts?
A: Its 2300mm/min rapid feed and 18-speed spindle reduce setup time, boosting multi-angle cutting efficiency for complex geometry parts.
Interested in the X6140 Universal Milling Machine?
Contact our sales team for a customized quote, technical consultation, or factory visit arrangement
