CW61160

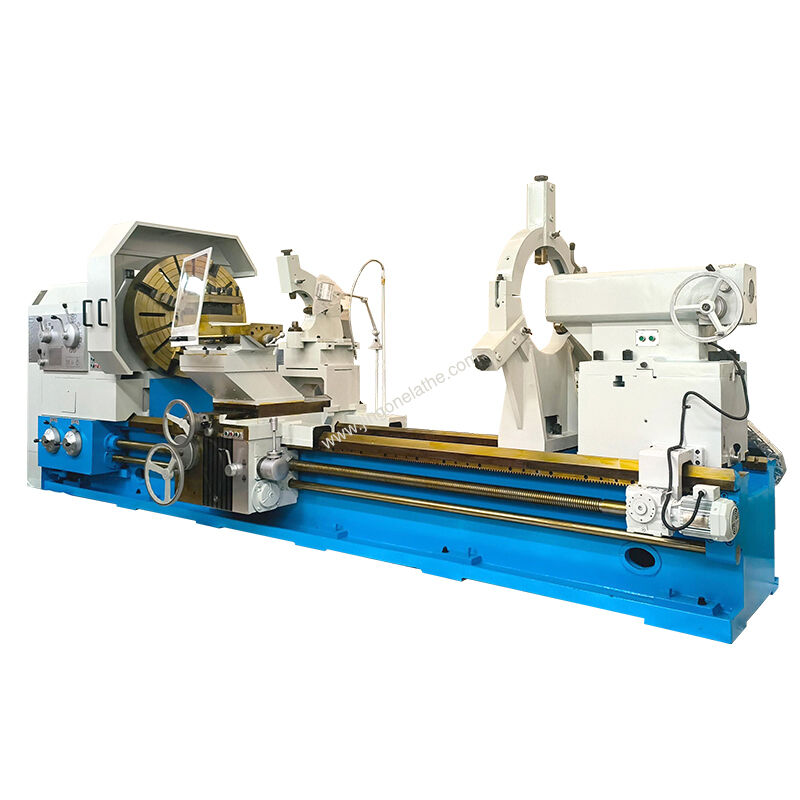

Heavy duty lathe CW61160 is engineered for demanding turning operations on large-scale maritime, energy, and mining components.
Supporting up to 6,000 kg (6 tons) between centers, this large diameter lathe features a 1,640 mm max swing over bed and an ultra-wide 755 mm bed guide rail to absorb cutting forces and eliminate bed deflection during deep roughing passes.
Powered by a 22 kW main motor paired with an oil-bath lubrication system, the CW61160 provides 21 forward spindle speeds ranging from 3.15 to 315 RPM, delivering high gear-driven torque at low speeds for heavy alloy turning.

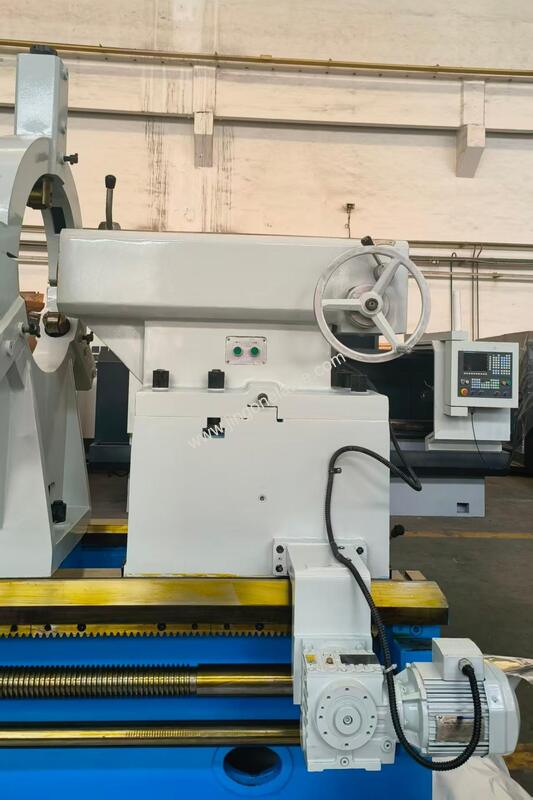

160 mm tailstock quill with an MT6 center taper supports heavy workpiece ends and prevents slender shaft whip during aggressive turning passes.

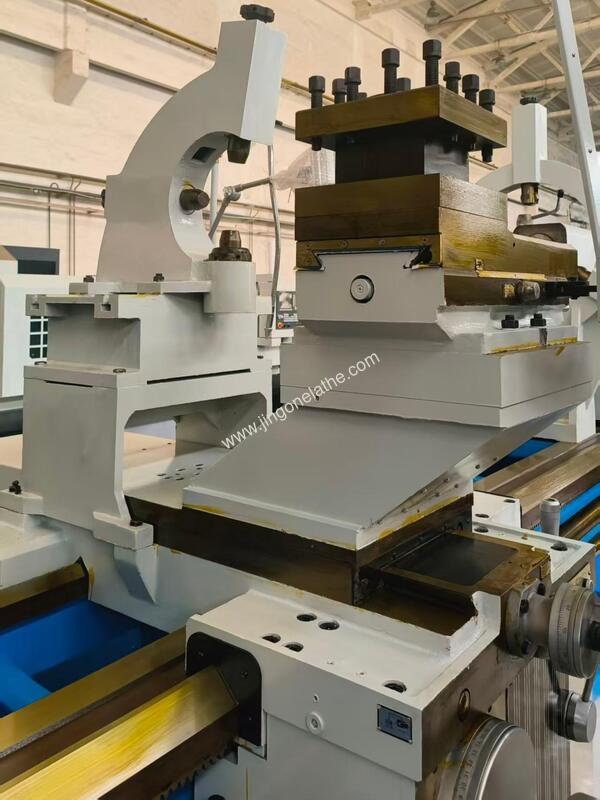

45x45 mm tool holder cross-section provides high resistance to flex and vibration during deep cutting and heavy facing operations.
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing over bed | 1640 mm |
| Max. swing over carriage | 1250 mm |
| Max. workpiece length | 1500/2000/3000/4000/5000/6000/8000/10000/12000/14000 mm |
| Max. Turning length | 1300/1800/2800/3800/4800/5800/7800/9800/11800/13800 mm |
| Width of the bed guide rail | 755 mm |
| **Spindle** | |
| Spindle through-hole | ¢130 mm |
| Spindle hole front end taper | Metric 140 mm |
| Number of spindle forward rotation types | 21 |
| Spindle forward speed range | 3.15–315 rpm |
| Number of spindle reverse rotation types | 12 |
| Spindle reverse speed range | 3.5–291 rpm |
| **Feed** | |
| Number of longitudinal and transverse feed rates per spindle revolution | 56 |
| Longitudinal feed rate range | 0.1–12 mm |
| Transverse feed rate range (half of longitudinal) | 0.05–6 mm |
| Upper tool post feed rate range (1/4 of longitudinal) | 0.025–3 mm |
| **Thread Capacity** | |
| Metric threads | 44 types (1–120 mm) |
| Inch threads | 31 types (28–1/4 T.P.I) |
| Module threads | 45 types (0.5–60 mm) |
| Dia. threads (DP) | 38 types (56–1/2) |
| **Tool Post** | |
| Vertical distance from spindle center to tool mounting base | 48 mm |
| Tool cross-section | 45x45 mm |
| Tool post rotation angle | ±90° |
| Max. travel of the saddle | 1450/1950/2950 mm |
| Max. transverse travel of lower tool post | 630 mm |
| Max. travel of upper tool post | 300 mm |
| Travel per dial division (upper/lower tool posts) | 0.05 mm |
| Rapid traverse speed (Longitudinal/Transverse) | 3740/1870 mm/min |
| Compound rest rapid traverse speed | 935 mm/min |
| **Tailstock** | |
| Sleeve diameter | ¢160 mm |
| Sleeve travel | 300 mm |
| Center sleeve taper | MT.6 |
| **Power** | |
| Main motor power | 22 Kw |
| Main motor speed | 1460 rpm |
| **Lubrication System** | |
| Oil cylinder working pressure | 25 Kg/cm |
| Gear pump flow | 10 L/min |
| Gear pump speed | 1450 rpm |
| **Max. Load of the Lathe** | 6 T |
| **Weight & Dimensions** | |
| Height | 2150 mm |
| Width | 2150 mm |
| Length | 4600/5100/6100/7100/8100/9100/11100/13100/15100/17100 mm |
| Net weight | 10900/11400/12900/14400/15900/16600/18000/19400/20800/22200 kg |
| Accessory | Configuration |
|---|---|

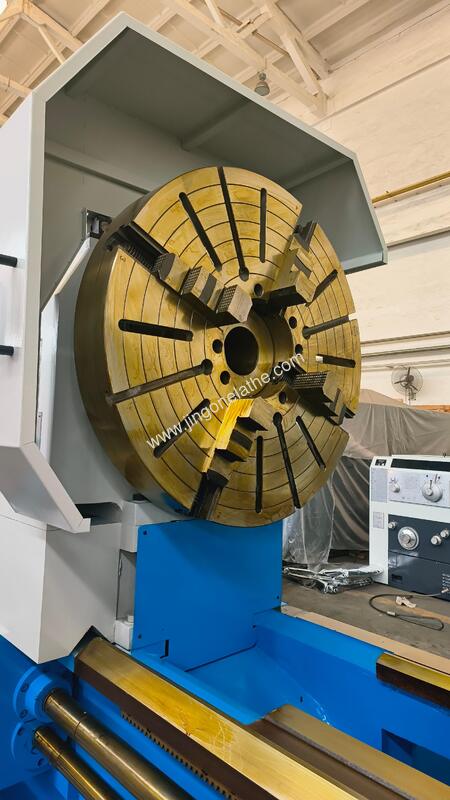

| 4-Jaw chuck | Standard |
| Lightning device | Standard |
| Coolant device | Standard |
| Support tool box | Standard |
| Operation manual | Standard |
| Qualified instructions | Standard |
| Packing list | Standard |
Q: What industries and applications is the CW61160 heavy duty lathe designed for?
A: The CW61160 is designed for heavy machinery, marine engineering, energy, and mining manufacturing. It excels at turning large-diameter marine propeller shafts, turbine rotors, heavy hydraulic cylinders, mill rolls, and large flanges that require high torque and rigid structural support.
Q: How does the 755 mm bed width benefit heavy-duty machining?
A: A wider bed increases the distance between the front and rear guide rails, which lowers the machine's center of gravity and distributes the 6000kg load evenly. This prevents saddle twisting, dampens high-frequency cutting vibrations, and maintains axial straightness across long machining lengths.
Q: How does the CW61160 handle slender shafts to prevent deflection and whip?

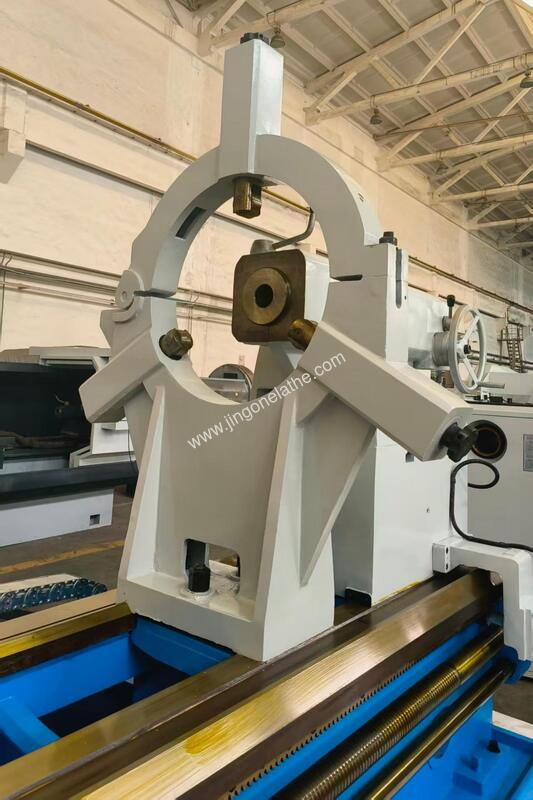

A: To prevent shaft whip on long workpieces, the CW61160 heavy duty lathe utilizes a rigid 160 mm diameter tailstock sleeve with MT6 taper support. For workpieces where the length-to-diameter ratio (L/D) exceeds 4:1, optional steady rests (20-125mm/100-250mm) and follower rests should be used along the bedways to eliminate sagging and chatter.
